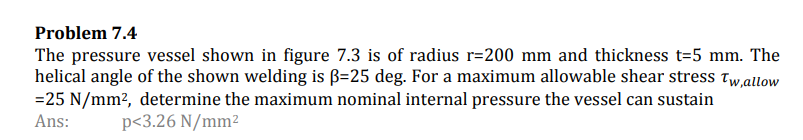

Problem 7.4 The pressure vessel shown in figure 7.3 is of radius r=200 mm and thickness t=5 mm. The helical angle of the shown welding is ß=25 deg. For a maximum allowable shear stress Tw,allow =25 N/mm², determine the maximum nominal internal pressure the vessel can sustain Ans: p<3.26 N/mm²
