B 60° 3 A H D m kg pipe E Order the steps you would need to take in order to determine the tension in the 5 cords. The

Post by answerhappygod »

B 60 3 A H D M Kg Pipe E Order The Steps You Would Need To Take In Order To Determine The Tension In The 5 Cords The 1
B 60 3 A H D M Kg Pipe E Order The Steps You Would Need To Take In Order To Determine The Tension In The 5 Cords The 1 (98.47 KiB) Viewed 38 times

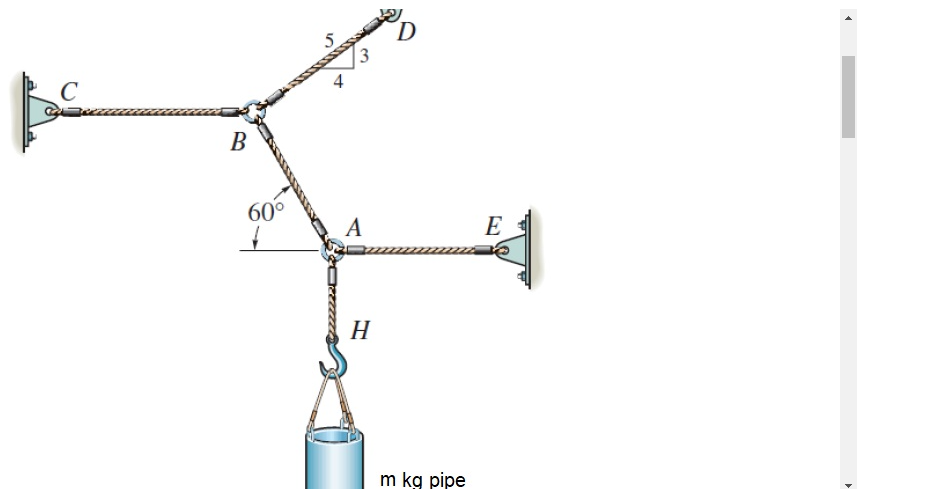

B 60° 3 A H D m kg pipe E

Order the steps you would need to take in order to determine the tension in the 5 cords. The mass of the pipe is given. Using FBD of ring B, determine the tension in BC. Draw FBD of the pipe, the ring A, and the ring B Using FBD of ring B, determine the tension in BD. Using FBD of ring A, determine the tension in AB. Determine the tension in AH Using FBD of ring A, determine the tension in AE. Next incorrect question

m kg pipe A 21.5-kg pipe is supported at A by a system of 5 cords. Determine the Tension in AB. NOTE THAT THE MASS MAY HAVE CHANGED FROM THE PREVIOUS QUESTION Your Answer:
