A given frame shown is subjected to lateral loads of 25 KN and 50 KN acting at joints A and D respectively. Use Cantilev

Post by answerhappygod »

A Given Frame Shown Is Subjected To Lateral Loads Of 25 Kn And 50 Kn Acting At Joints A And D Respectively Use Cantilev 1
A Given Frame Shown Is Subjected To Lateral Loads Of 25 Kn And 50 Kn Acting At Joints A And D Respectively Use Cantilev 1 (128.64 KiB) Viewed 43 times

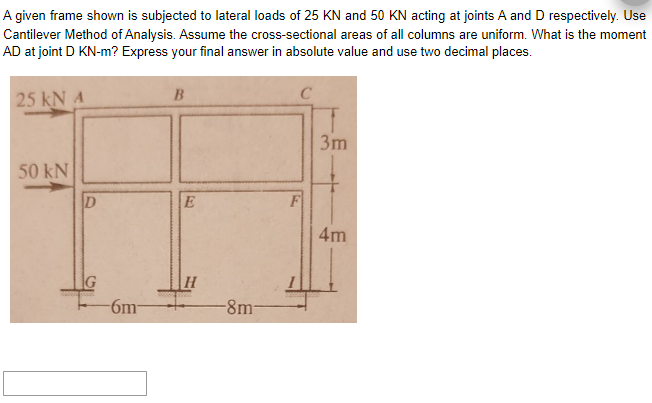

A given frame shown is subjected to lateral loads of 25 KN and 50 KN acting at joints A and D respectively. Use Cantilever Method of Analysis. Assume the cross-sectional areas of all columns are uniform. What is the moment AD at joint D KN-m? Express your final answer in absolute value and use two decimal places. 25 kN A B 3m 50 kN 4m D -6m- E H -8m
