printed via. If the tank is empty, some drinking water can be taken into it.
Expectations from the system:
➢ The system must always be able to supply water. If the rainwater runs out, check
system should be able to activate drinking water.
➢ While the rain water is fed from the drinking water source, it is fed to the drinking water system.
should not enter.
➢ If there is not enough water in the tank, the pump should not start (idle running protection) System Equipment:
• Water pump (DC motor) • Solenoid valve
• Pressure switch
• 3 level switches
The system that will perform this operation;
a) Draw the power and control circuits.
b) Create the input and output table
c) Create a signal flow diagram

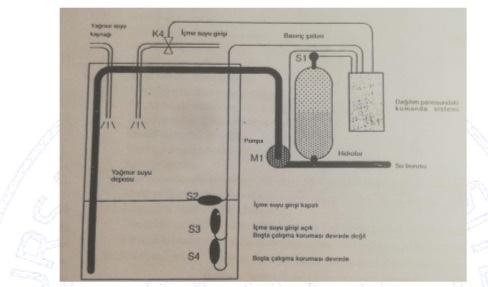

- Rainwater Is Collected In A Tank Of Sufficient Capacity Pump From Tank To Plumbing Printed Via If The Tank Is Empty 1 (14.22 KiB) Viewed 48 times
lid ZIN ZIN Yağmur suy K4, $2 2 2 51 M1 Hoobe megha Bogta colgma kamasi dewinde değ kap Dag paladi
