A beam ABC is supported and loaded as shown in Figure Q1. a) Express the shear force and bending moment in terms of x fo

Post by answerhappygod »

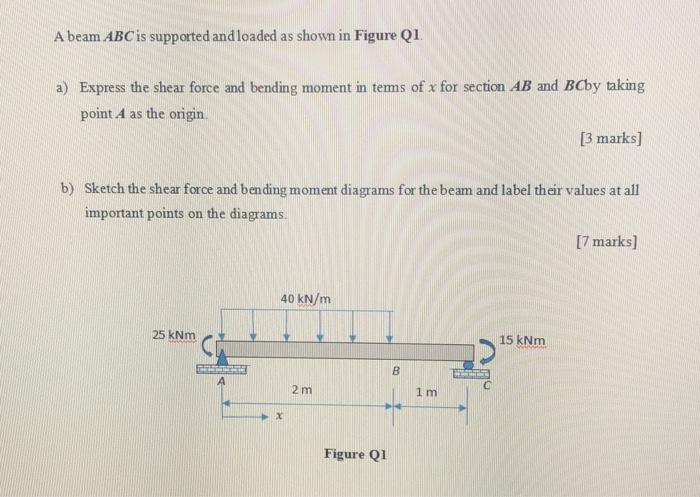

A Beam Abc Is Supported And Loaded As Shown In Figure Q1 A Express The Shear Force And Bending Moment In Terms Of X Fo 1
A Beam Abc Is Supported And Loaded As Shown In Figure Q1 A Express The Shear Force And Bending Moment In Terms Of X Fo 1 (58.26 KiB) Viewed 60 times
A beam ABC is supported and loaded as shown in Figure Q1. a) Express the shear force and bending moment in terms of x for section AB and BCby taking point 4 as the origin. [3 marks] b) Sketch the shear force and bending moment diagrams for the beam and label their values at all important points on the diagrams. [7 marks] 40 kN/m 25 kNm 15 kNm 2m A x Figure Q1 B 1m
