A-5-4. Determine the values of K and k of the closed-loop system shown in Figure 5-53 so that the maximum overshoot in u

Post by answerhappygod »

A 5 4 Determine The Values Of K And K Of The Closed Loop System Shown In Figure 5 53 So That The Maximum Overshoot In U 1
A 5 4 Determine The Values Of K And K Of The Closed Loop System Shown In Figure 5 53 So That The Maximum Overshoot In U 1 (13.27 KiB) Viewed 29 times

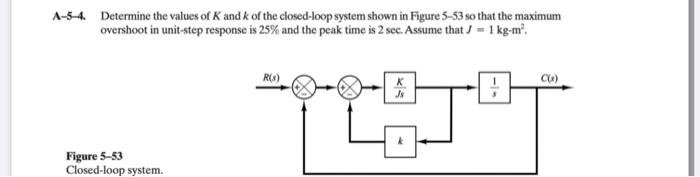

A-5-4. Determine the values of K and k of the closed-loop system shown in Figure 5-53 so that the maximum overshoot in unit-step response is 25% and the peak time is 2 sec. Assume that J = 1 kg-m². Figure 5-53 Closed-loop system.
