4. As is shown in the scheme, po-p₁=1bar, the reading of vacuum gauge p,-0.4bar, the reading of pressure gauge Pm 3bar.

[answerhappygod]

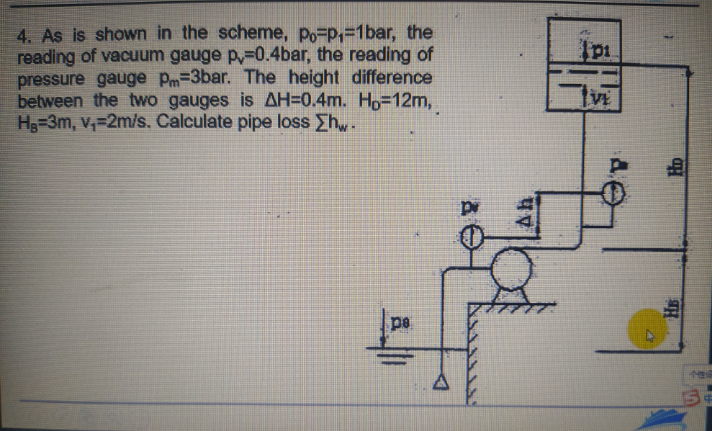

4 As Is Shown In The Scheme Po P 1bar The Reading Of Vacuum Gauge P 0 4bar The Reading Of Pressure Gauge Pm 3bar 1 (744.58 KiB) Viewed 47 times

Dear expert, I need your help to get the full and complete answer of this question.
Note: plz mention or demonstrate all detail of the answer.
#thumbs up granted if answer is correct....!
4. As is shown in the scheme, po-p₁=1bar, the reading of vacuum gauge p,-0.4bar, the reading of pressure gauge Pm 3bar. The height difference between the two gauges is AH-0.4m. H₂=12m, H₂-3m, v₁-2m/s. Calculate pipe loss [hw. Dv po Ah pi VE HD HIS 24 3
