l AM To * 그림 14.74 문제 14.5

Post by answerhappygod »

1
1 (67.63 KiB) Viewed 29 times

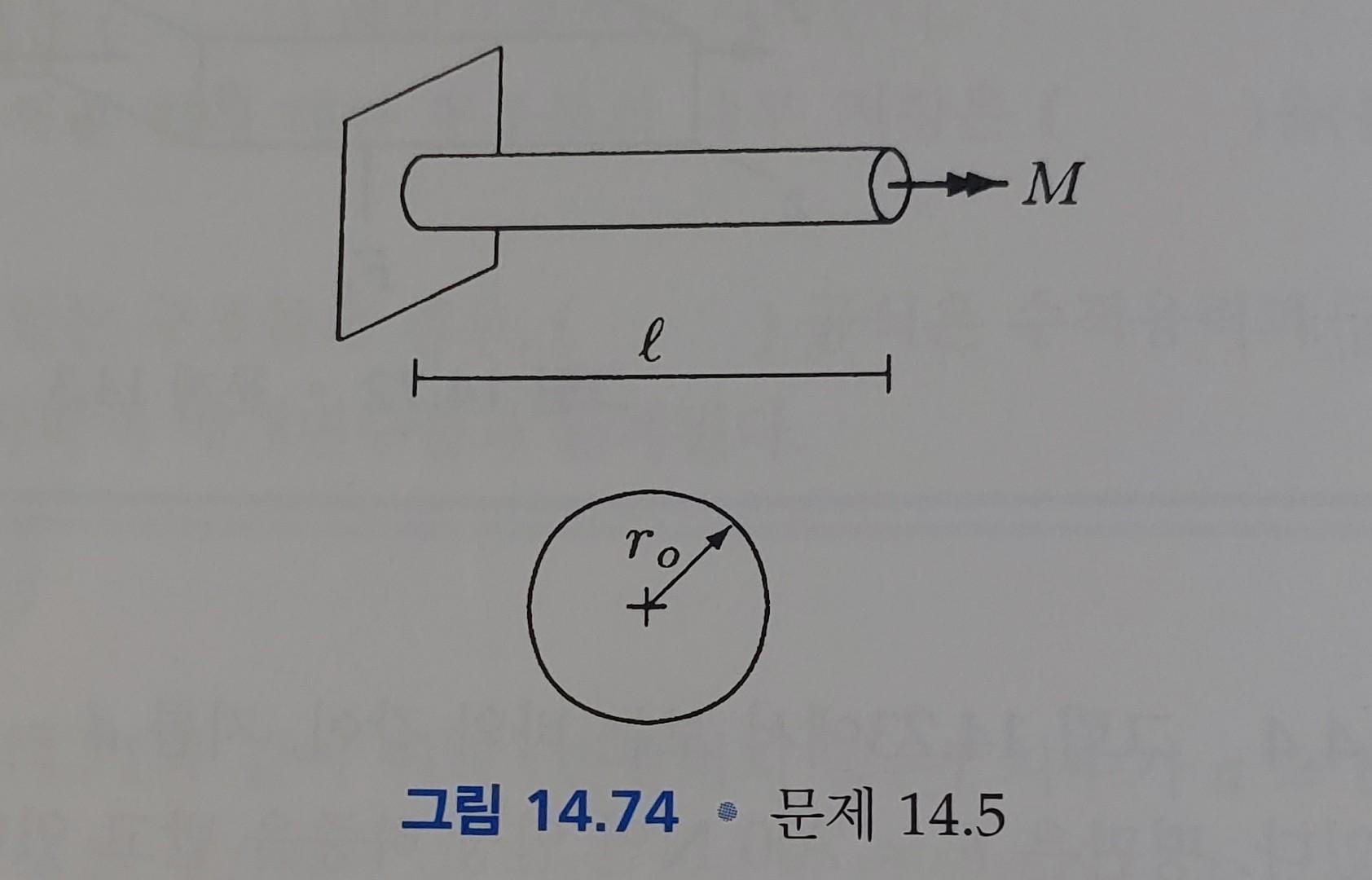

Consider the filled cylinder in Figure 14.74. The length of the cylinder is l = 10 cm and the radius is r0 = 2 cm. The cylinder was made of a linear elastic material with a total number of steps G=10 GPa. When the cylinder is receiving the magnitude of the torsional torque M = 3000 Nm, calculate the following:
(a) Polar inertial moment of cylindrical section J
(b) Maximum Torsional Angle
(c) Maximum shear stress on the transverse plane
(d) Maximum Shear Deformation Rate of Horizontal Plane
l AM To * 그림 14.74 문제 14.5
