WORKSHOP QUESTION 4 Consider the wall crane system shown in the figure below. The crane is able to support a load of 490

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

WORKSHOP QUESTION 4 Consider the wall crane system shown in the figure below. The crane is able to support a load of 490

Post by answerhappygod »

Workshop Question 4 Consider The Wall Crane System Shown In The Figure Below The Crane Is Able To Support A Load Of 490 1
Workshop Question 4 Consider The Wall Crane System Shown In The Figure Below The Crane Is Able To Support A Load Of 490 1 (80.16 KiB) Viewed 32 times

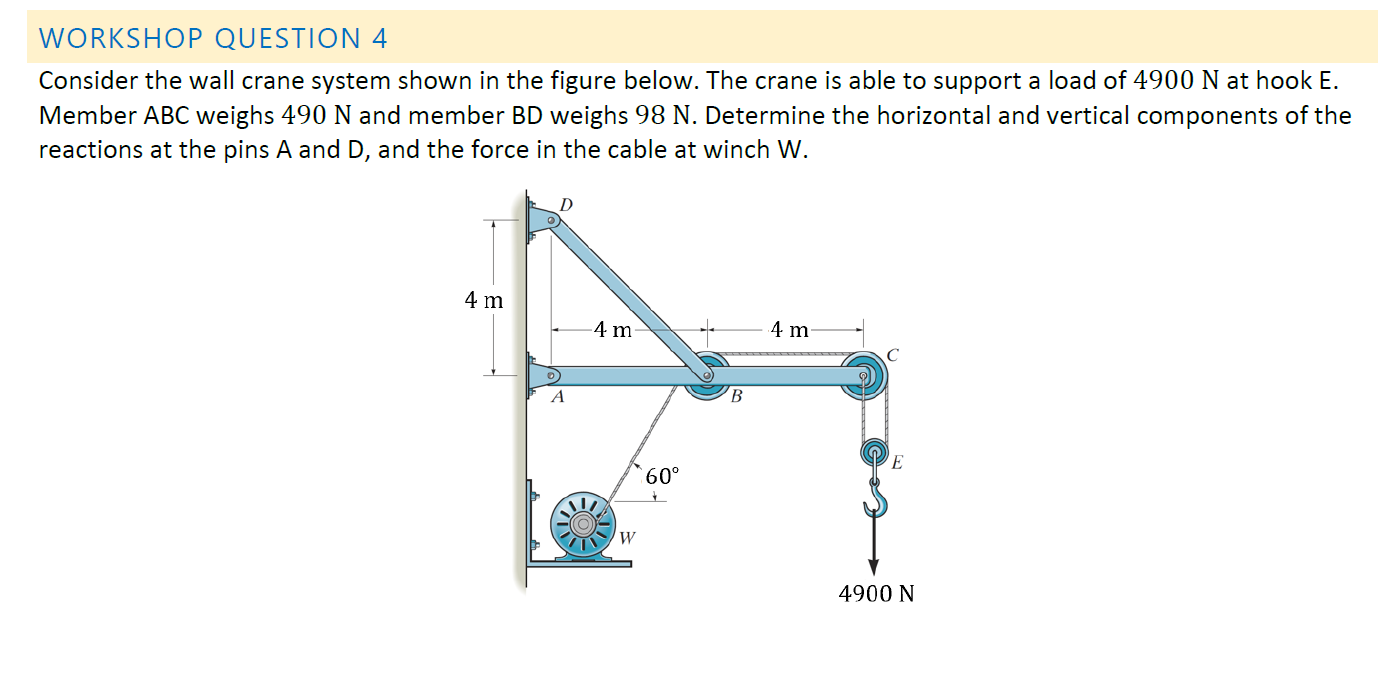

WORKSHOP QUESTION 4 Consider the wall crane system shown in the figure below. The crane is able to support a load of 4900 N at hook E. Member ABC weighs 490 N and member BD weighs 98 N. Determine the horizontal and vertical components of the reactions at the pins A and D, and the force in the cable at winch W. 4 m -4 m 4 m 0) A W 60° B E 4900 N
