600 FIGURE PR.1 2. Consider the unity feedback system shown in Egurs 29.1, where G()= K (+3)(+6) a Design a Pt controlle

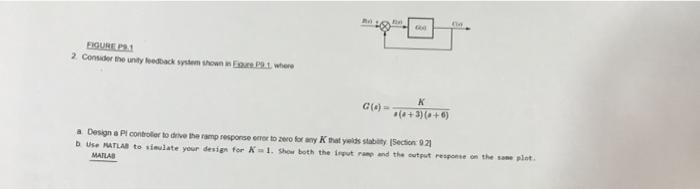

600 FIGURE PR.1 2. Consider the unity feedback system shown in Egurs 29.1, where G()= K (+3)(+6) a Design a Pt controller to drive the ramp response omor to zero for any K that yelds stability (Section: 9.21 b Use MATLAB to simulate your design for K-1. Show both the input ramp and the output response on the same plot. MATLAB BA
