Q2/The following data for an IC engine:-mrod= 1.3 kg.Lord =200 mm.Cg of rod at 60 mm from crank pin centre.Mp =0.96kg.λ=

Post by answerhappygod »

1
1 (26.44 KiB) Viewed 38 times

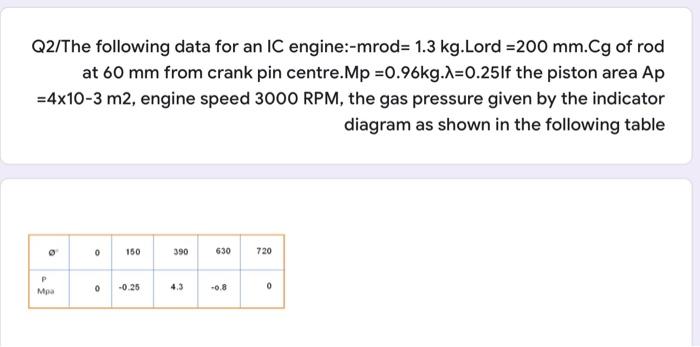

Q2/The following data for an IC engine:-mrod= 1.3 kg.Lord =200 mm.Cg of rod at 60 mm from crank pin centre.Mp =0.96kg.λ=0.25lf the piston area Ap =4x10-3 m2, engine speed 3000 RPM, the gas pressure given by the indicator diagram as shown in the following table Ø 0 150 390 630 720 0 -0.25 0 P Mpa 4.3 -0.8
