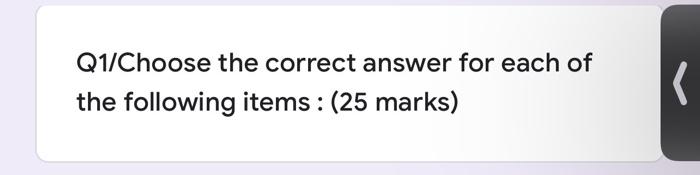

Q1/Choose the correct answer for each of the following items: (25 marks) (

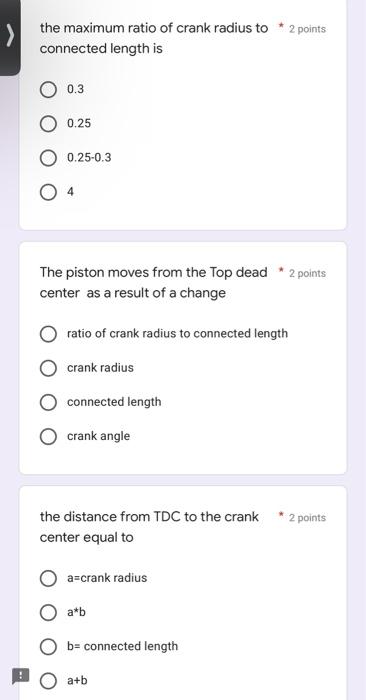

the maximum ratio of crank radius to connected length is 0.3 0.25 0.25-0.3 The piston moves from the Top dead center as a result of a change ratio of crank radius to connected length crank radius connected length crank angle the distance from TDC to the crank center equal to a=crank radius a*b b= connected length a+b 2 points 2 points 2 points
