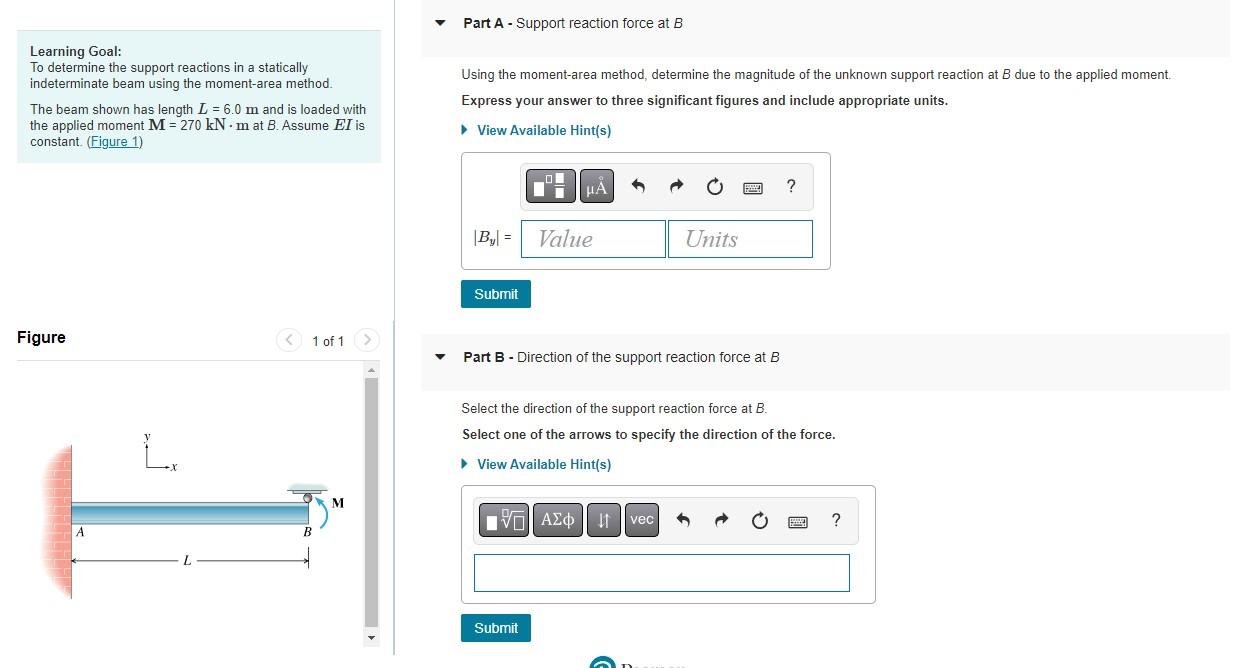

Learning Goal To Determine The Support Reactions In A Statically Indeterminate Beam Using The Moment Area Method The B 1 (65.33 KiB) Viewed 33 times
Learning Goal: To determine the support reactions in a statically indeterminate beam using the moment-area method. The beam shown has length L = 6.0 m and is loaded with the applied moment M = 270 kNm at B. Assume EI is constant. (Figure 1) Figure < 1 of 1 L Part A - Support reaction force at B Using the moment-area method, determine the magnitude of the unknown support reaction at B due to the applied moment. Express your answer to three significant figures and include appropriate units. ► View Available Hint(s) μA ? Byl = Value Units Submit Part B - Direction of the support reaction force at B Select the direction of the support reaction force at B. Select one of the arrows to specify the direction of the force. ► View Available Hint(s) IVE ΑΣΦ 11 vec ? Submit
Part C - Support reaction forces at A Using the static equilibrium conditions, determine the magnitude of the unknown support reactions at A due to the applied moment. Express your answers in kN to three significant figures separated by a comma. ▸ View Available Hint(s) 1951 ΑΣΦ AEO vec ? |Ay|. |A₂| = Submit Part D - Direction of the support reaction force at A Select the direction of the vertical support reaction force at A. Select one of the arrows to specify the direction of the force. ▸ View Available Hint(s) ΨΕ ΑΣΦ 41 vec ? S Submit kN kN
Part E - Support reaction moment at A Using the static equilibrium conditions, determine the magnitude of the support reaction moment at A. Express your answer to three significant figures and include appropriate units. ▸ View Available Hint(s) 0 μA ? |MA| = Value Units Submit ▼ Part F - Direction of the support reaction moment at A Select the direction of the support reaction moment at A. Select one of the arrows to specify the direction of the moment. ▸ View Available Hint(s) 15. ΑΣΦ 41 vec ? Submit
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
