Support Reactions, • Shear and Moment Equations. For the last segment use the FBD of the right section, Shear and Moment

Post by answerhappygod »

Support Reactions Shear And Moment Equations For The Last Segment Use The Fbd Of The Right Section Shear And Moment 1
Support Reactions Shear And Moment Equations For The Last Segment Use The Fbd Of The Right Section Shear And Moment 1 (81.53 KiB) Viewed 38 times

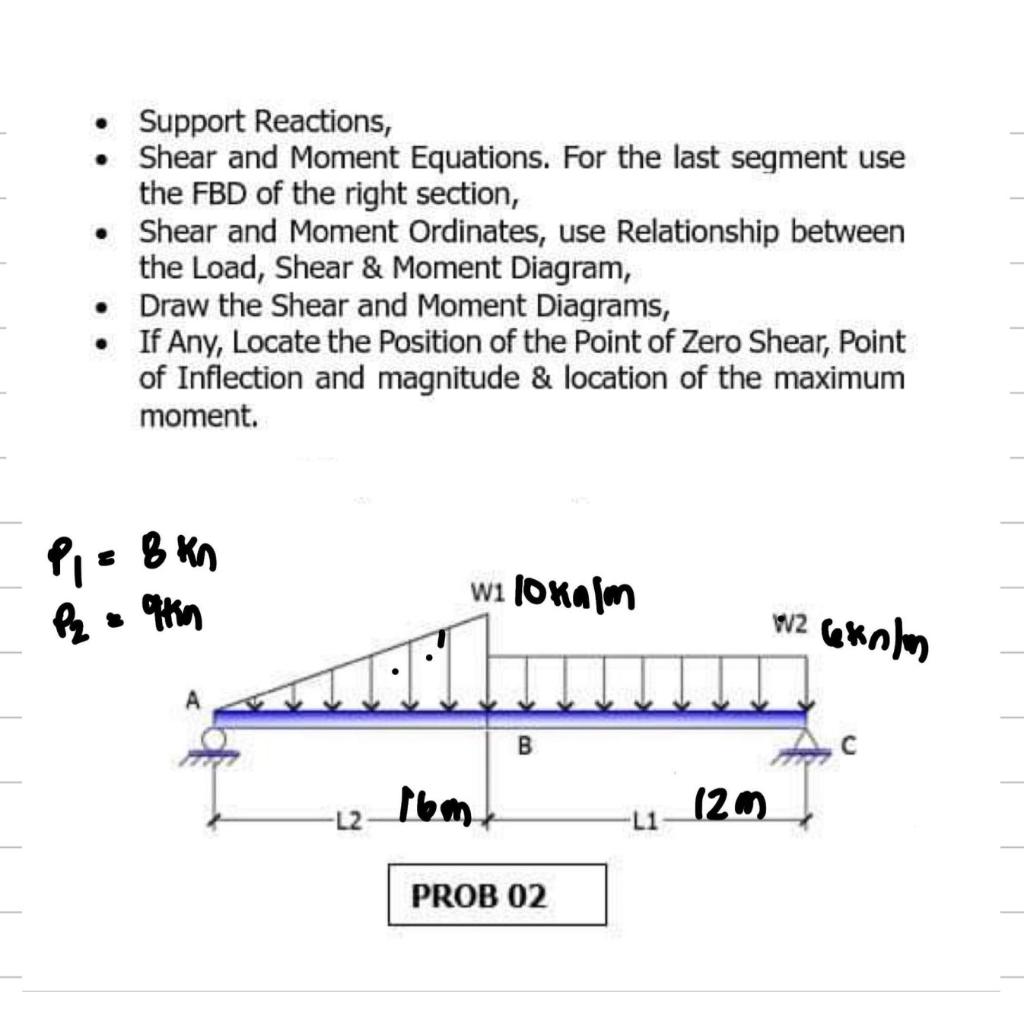

Support Reactions, • Shear and Moment Equations. For the last segment use the FBD of the right section, Shear and Moment Ordinates, use Relationship between the Load, Shear & Moment Diagram, Draw the Shear and Moment Diagrams, If Any, Locate the Position of the Point of Zero Shear, Point of Inflection and magnitude & location of the maximum moment. W1 lokalm W2 lekinla B PROB 02 P₁ = 8 kn P₂ = 9tin -L2- 12m
