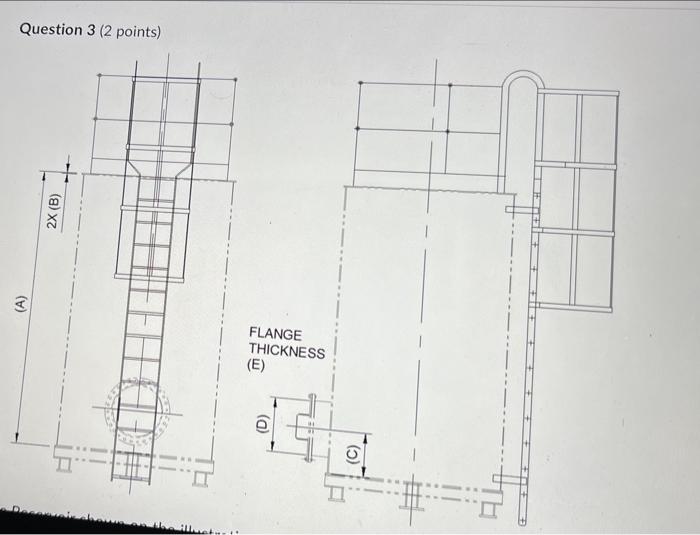

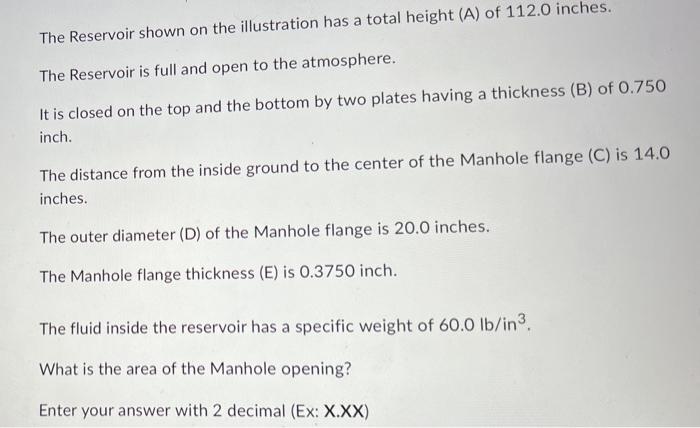

The Reservoir shown on the illustration has a total height (A) of 112.0 inches. The Reservoir is full and open to the atmosphere. It is closed on the top and the bottom by two plates having a thickness (B) of 0.750 inch. The distance from the inside ground to the center of the Manhole flange (C) is 14.0 inches. The outer diameter (D) of the Manhole flange is 20.0 inches. The Manhole flange thickness (E) is 0.3750 inch. The fluid inside the reservoir has a specific weight of 60.0 lb/in³. What is the area of the Manhole opening? Enter your answer with 2 decimal (Ex: X.XX)
