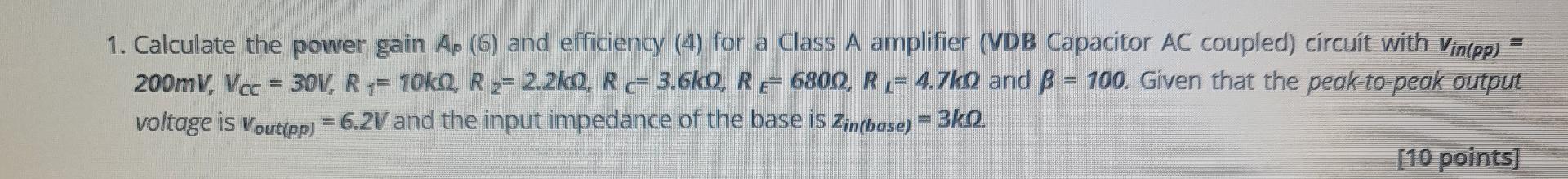

- 1 Calculate The Power Gain Ap 6 And Efficiency 4 For A Class A Amplifier Vdb Capacitor Ac Coupled Circuit With 1 (90.89 KiB) Viewed 14 times
= 1. Calculate the power gain Ap (6) and efficiency (4) for a Class A amplifier (VDB Capacitor AC coupled) circuit with
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
= 1. Calculate the power gain Ap (6) and efficiency (4) for a Class A amplifier (VDB Capacitor AC coupled) circuit with
= 1. Calculate the power gain Ap (6) and efficiency (4) for a Class A amplifier (VDB Capacitor AC coupled) circuit with Vin(pp) 200mV, Vcc= 30V, R = 10kQ, R ₂-2.2kQ, R c 3.6kQ, R = 6800, R ‚= 4.7kQ0 and B = 100. Given that the peak-to-peak output voltage is Vout(pp) = 6.2V and the input impedance of the base is Zin(base) = 3kQ. [10 points]
