A Following Is A Dynamic Logic Gate Sketch The Output Waveform For The Given Inputs I E Sketch Output F I 2 0 V Cik 1 (31.27 KiB) Viewed 18 times

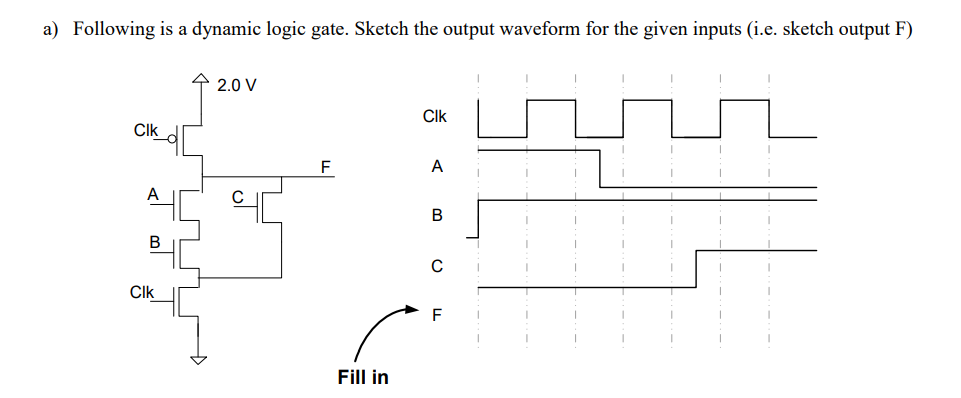

a) Following is a dynamic logic gate. Sketch the output waveform for the given inputs (i.e. sketch output F) I 2.0 V CIK CIK d F A A B с F J J B Cik Fill in
b) A minimum sized inverter with equal rise and fall times is shown on the left. Give the sizes of the transistors in the circuit on the right so it has roughly the same rise and fall times as the inverter. Minimum-size inverter out 9/2 a 5/2 Add sizes here
