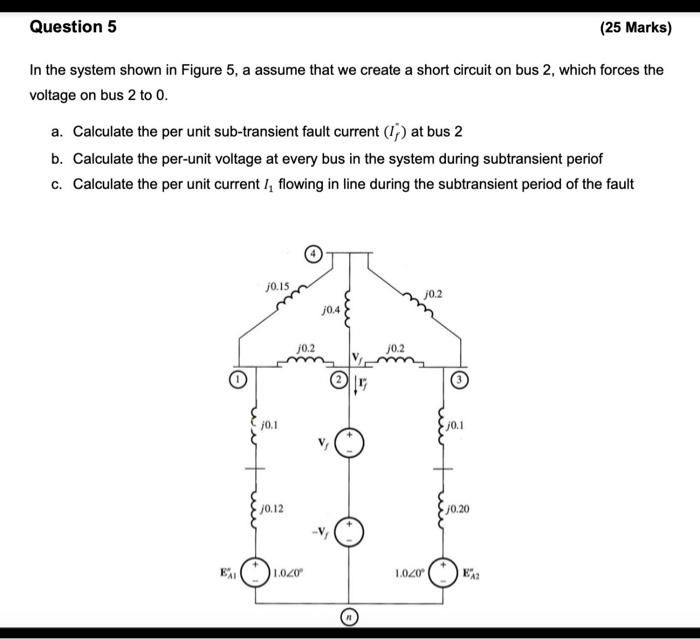

Question 5 (25 Marks) In the system shown in Figure 5, a assume that we create a short circuit on bus 2, which forces the voltage on bus 2 to 0. a. Calculate the per unit sub-transient fault current (1) at bus 2 b. Calculate the per-unit voltage at every bus in the system during subtransient periof c. Calculate the per unit current I, flowing in line during the subtransient period of the fault 0.15 j0.2 j0.4 EAI j0.1 10.12 j0.2 1.020 j0.2 1.020⁰ j0.1 10.20
