(1 point) In the circuit below: V1 = 14.5 V, V2 = -0.5 V, V3 = 15 V, V5 = 1 V, and V6 = 16 V. i6 = -2 A. 12 = 5 A, 13 =

Post by answerhappygod »

1 Point In The Circuit Below V1 14 5 V V2 0 5 V V3 15 V V5 1 V And V6 16 V I6 2 A 12 5 A 13 1
1 Point In The Circuit Below V1 14 5 V V2 0 5 V V3 15 V V5 1 V And V6 16 V I6 2 A 12 5 A 13 1 (58.5 KiB) Viewed 16 times

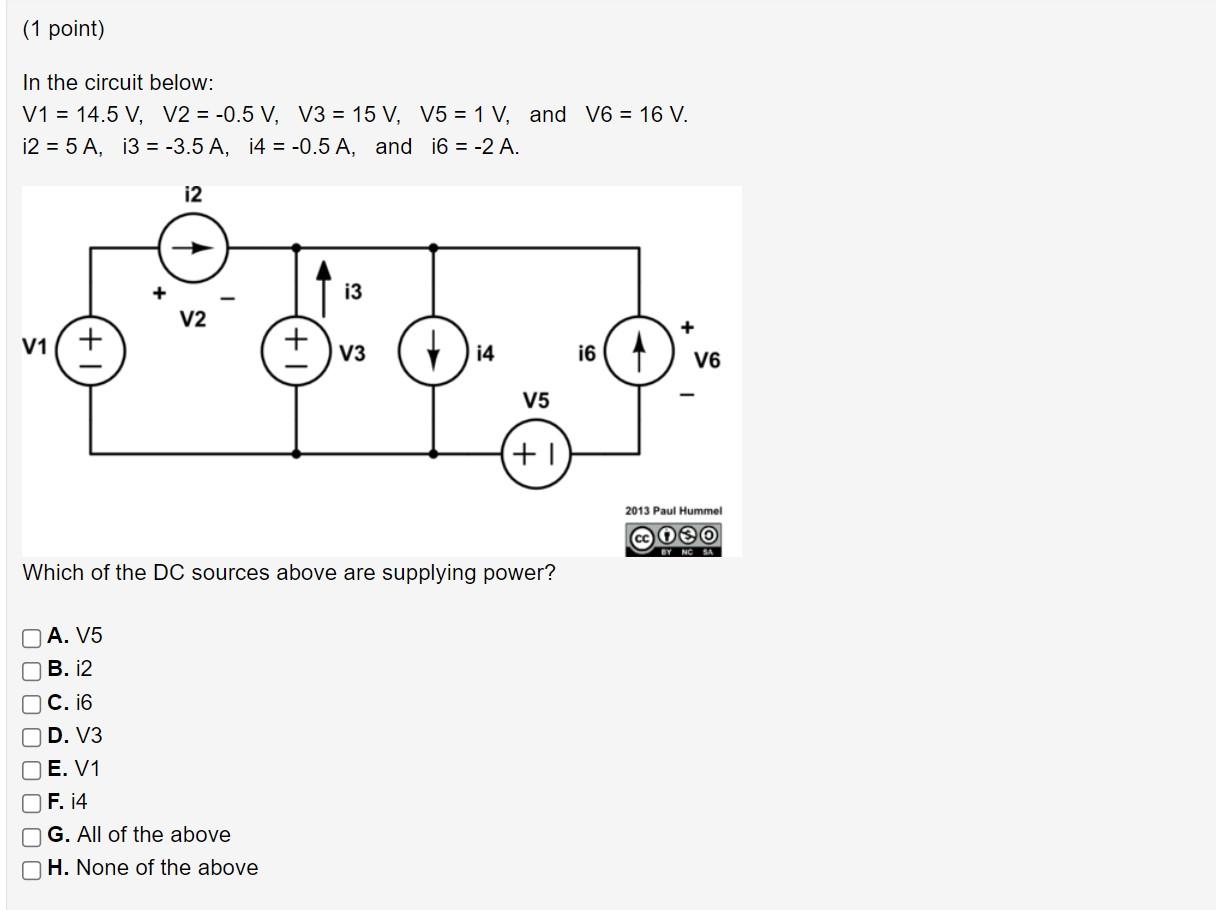

(1 point) In the circuit below: V1 = 14.5 V, V2 = -0.5 V, V3 = 15 V, V5 = 1 V, and V6 = 16 V. i6 = -2 A. 12 = 5 A, 13 = -3.5 A, 14 = -0.5 A, and 12 i3 V2 V1 V3 i4 i6 4 + V6 V5 +1 2013 Paul Hummel cc 030 Which of the DC sources above are supplying power? OA. V5 B. 12 C. 16 D. V3 OE. V1 F. i4 G. All of the above H. None of the above 1+ +
