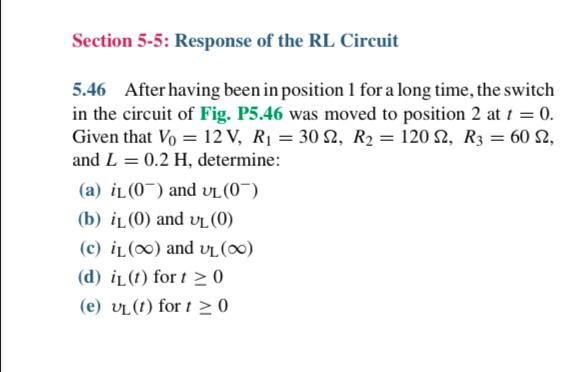

Section 5-5: Response of the RL Circuit 5.46 After having been in position 1 for a long time, the switch in the circuit of Fig. P5.46 was moved to position 2 at t = 0. Given that Vo = 12 V, R₁ = 30 22, R₂ = 1202, R3 = 60 52, and L = 0.2 H, determine: (a) iL (0) and UL (0) (b) iL (0) and UL (0) (c) iL (0) and UL (0) (d) iL (1) for t≥0 (e) UL (1) for t≥0

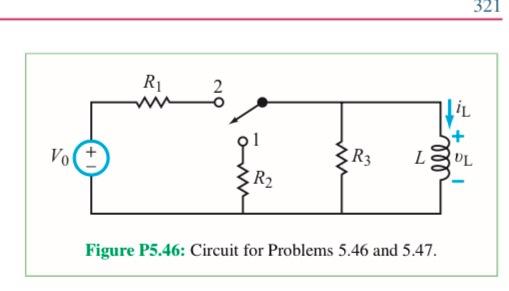

Vo R₁ R₂ Figure P5.46: Circuit for Problems 5.46 and 5.47. 2 www R3 L ele 321 DL
