A second order system has a unit step response of Figure 2.1: a. Identify the transfer function of the system. b. Find t

Post by answerhappygod »

A Second Order System Has A Unit Step Response Of Figure 2 1 A Identify The Transfer Function Of The System B Find T 1
A Second Order System Has A Unit Step Response Of Figure 2 1 A Identify The Transfer Function Of The System B Find T 1 (30.35 KiB) Viewed 58 times

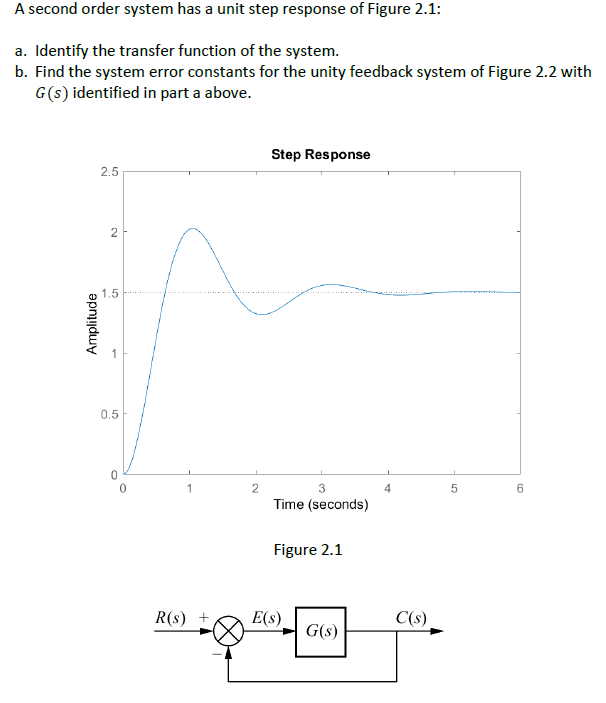

A second order system has a unit step response of Figure 2.1: a. Identify the transfer function of the system. b. Find the system error constants for the unity feedback system of Figure 2.2 with G(s) identified in part a above. Step Response 2.5 2 1.5 3 Time (seconds) Figure 2.1 G(s) Amplitude 0.5 0 R(s) + 2 E(s) C(s) 5 6
