Question 1 (25 Marks) i. For the circuit of Figure 1.1: 50ΚΩ ww v₁ (1) 200 Κ Ω 1 μF Figure 1.1 a. Derive the transfer fu
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Question 1 (25 Marks) i. For the circuit of Figure 1.1: 50ΚΩ ww v₁ (1) 200 Κ Ω 1 μF Figure 1.1 a. Derive the transfer fu

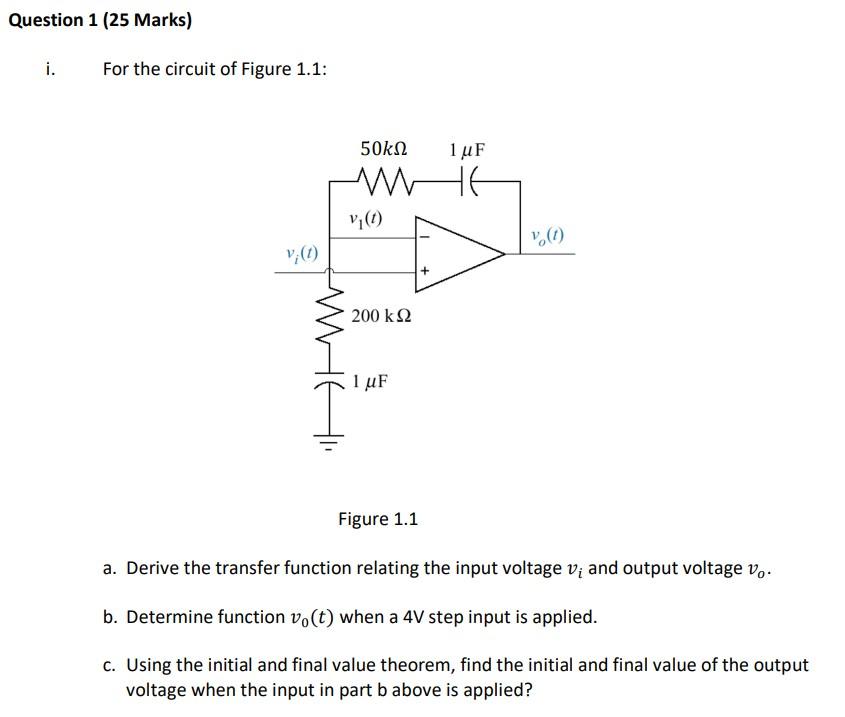

Question 1 (25 Marks) i. For the circuit of Figure 1.1: 50ΚΩ ww v₁ (1) 200 Κ Ω 1 μF Figure 1.1 a. Derive the transfer function relating the input voltage v₁ and output voltage vo. b. Determine function vo(t) when a 4V step input is applied. c. Using the initial and final value theorem, find the initial and final value of the output voltage when the input in part b above is applied? 1 μF v; (1) %(1)
