A A-connected load is supplied by a A- connected source with line voltage of 2X0 V and phase sequence ACB. The individua

Post by answerhappygod »

A A Connected Load Is Supplied By A A Connected Source With Line Voltage Of 2x0 V And Phase Sequence Acb The Individua 1
A A Connected Load Is Supplied By A A Connected Source With Line Voltage Of 2x0 V And Phase Sequence Acb The Individua 1 (26.2 KiB) Viewed 51 times

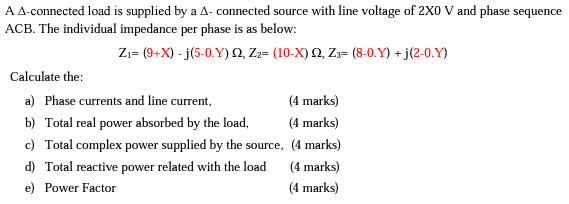

A A-connected load is supplied by a A- connected source with line voltage of 2X0 V and phase sequence ACB. The individual impedance per phase is as below: Z₁ (9+X) -j(5-0.Y) , Z₂= (10-X) 2, Z3 (8-0.Y) + j(2-0.Y) Calculate the: a) Phase currents and line current, (4 marks) b) Total real power absorbed by the load, (4 marks) c) Total complex power supplied by the source, (4 marks) (4 marks) d) Total reactive power related with the load e) Power Factor (4 marks)
