Q4 Part B Please Solve Fast 1 (36.16 KiB) Viewed 32 times
Please solve fast

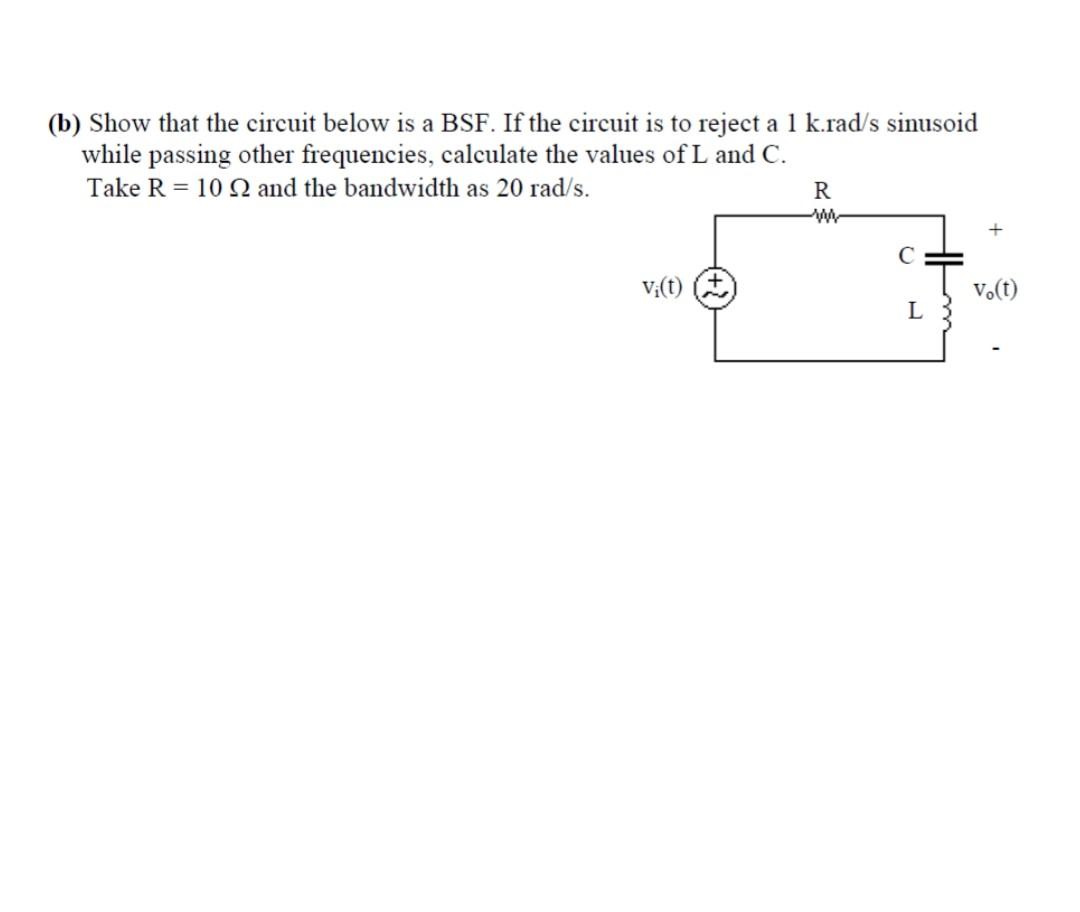

(b) Show that the circuit below is a BSF. If the circuit is to reject a 1 k.rad/s sinusoid while passing other frequencies, calculate the values of L and C. Take R = 102 and the bandwidth as 20 rad/s. R + C vi(t) vo(t) L
