B = 3, C = 8, 2D = 4

Post by answerhappygod »

B = 3, C = 8, 2D = 4
B 3 C 8 2d 4 1
B 3 C 8 2d 4 1 (36.5 KiB) Viewed 30 times

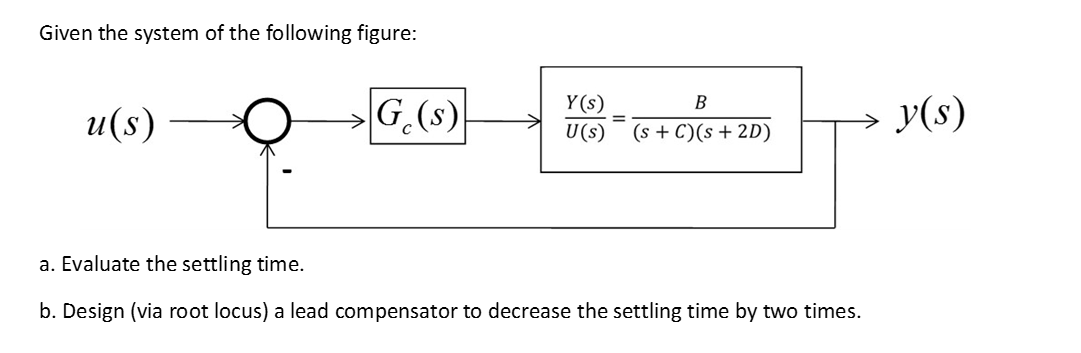

Given the system of the following figure: B u(s) G(s) Y(s) U(s) (s+C)(s + 2D) a. Evaluate the settling time. b. Design (via root locus) a lead compensator to decrease the settling time by two times. = → y(s)
