Problem 4. A full-wave rectifier is to be designed to produce a peak output voltage of 11 V, deliver 110 mA to the load,

Post by answerhappygod »

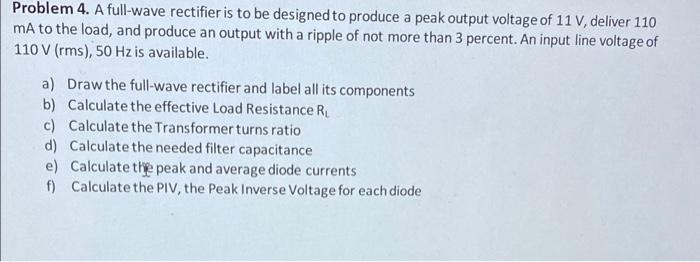

Problem 4 A Full Wave Rectifier Is To Be Designed To Produce A Peak Output Voltage Of 11 V Deliver 110 Ma To The Load 1
Problem 4 A Full Wave Rectifier Is To Be Designed To Produce A Peak Output Voltage Of 11 V Deliver 110 Ma To The Load 1 (27.46 KiB) Viewed 59 times
Problem 4. A full-wave rectifier is to be designed to produce a peak output voltage of 11 V, deliver 110 mA to the load, and produce an output with a ripple of not more than 3 percent. An input line voltage of 110 V (rms), 50 Hz is available. a) Draw the full-wave rectifier and label all its components b) Calculate the effective Load Resistance R₁ c) Calculate the Transformer turns ratio d) Calculate the needed filter capacitance e) Calculate the peak and average diode currents f) Calculate the PIV, the Peak Inverse Voltage for each diode
