Exercise 2: (12 Marks) The specifications for the circuit shown below include the following: v(t) = 220 √2 sin(wt) : f =

[answerhappygod]

Exercise 2 12 Marks The Specifications For The Circuit Shown Below Include The Following V T 220 2 Sin Wt F 1 (27.04 KiB) Viewed 37 times

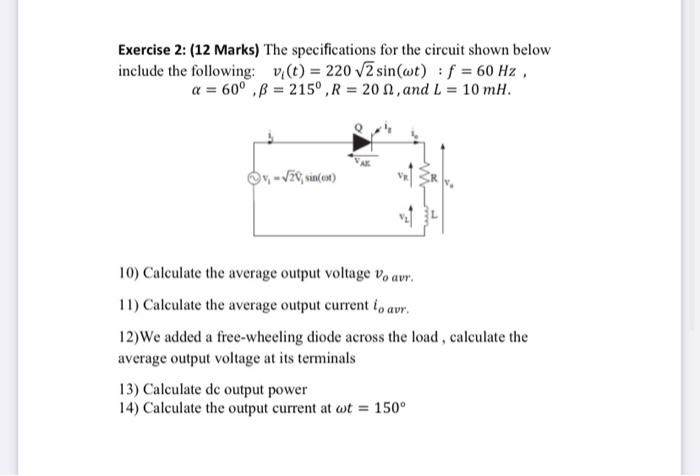

Exercise 2: (12 Marks) The specifications for the circuit shown below include the following: v(t) = 220 √2 sin(wt) : f = 60 Hz, a = 60° ß = 215°, R = 20, and L= 10 mH. -√2V, sin(t) 10) Calculate the average output voltage Vo avr. 11) Calculate the average output current to avr. 12)We added a free-wheeling diode across the load, calculate the average output voltage at its terminals 13) Calculate de output power 14) Calculate the output current at t = 150⁰
