Microcontroller of ABC brand is operating at 5V DC and has a 10-bit register to control the analog-to-digital (ADC) puls

Post by answerhappygod »

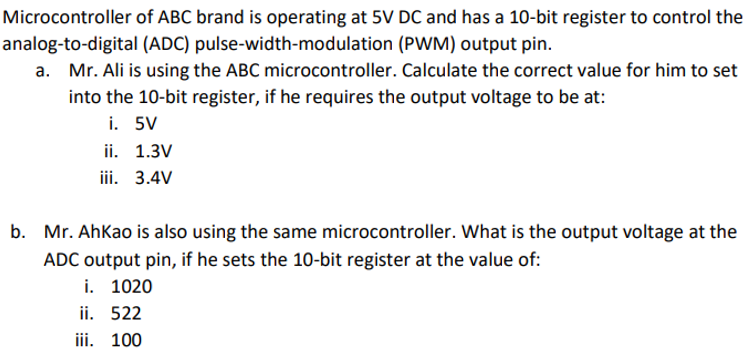

Microcontroller Of Abc Brand Is Operating At 5v Dc And Has A 10 Bit Register To Control The Analog To Digital Adc Puls 1
Microcontroller Of Abc Brand Is Operating At 5v Dc And Has A 10 Bit Register To Control The Analog To Digital Adc Puls 1 (120.08 KiB) Viewed 42 times
Microcontroller of ABC brand is operating at 5V DC and has a 10-bit register to control the analog-to-digital (ADC) pulse-width-modulation (PWM) output pin. a. Mr. Ali is using the ABC microcontroller. Calculate the correct value for him to set into the 10-bit register, if he requires the output voltage to be at: i. 5V ii. 1.3V iii. 3.4V b. Mr. AhKao is also using the same microcontroller. What is the output voltage at the ADC output pin, if he sets the 10-bit register at the value of: i. 1020 ii. 522 iii. 100
