5) Problem 5: For the circuit in Figure 4, use the same PMOS and NMOS data given in the 4th question. Assume Ibias = 50u

[answerhappygod]

5 Problem 5 For The Circuit In Figure 4 Use The Same Pmos And Nmos Data Given In The 4th Question Assume Ibias 50u 1 (44 KiB) Viewed 42 times

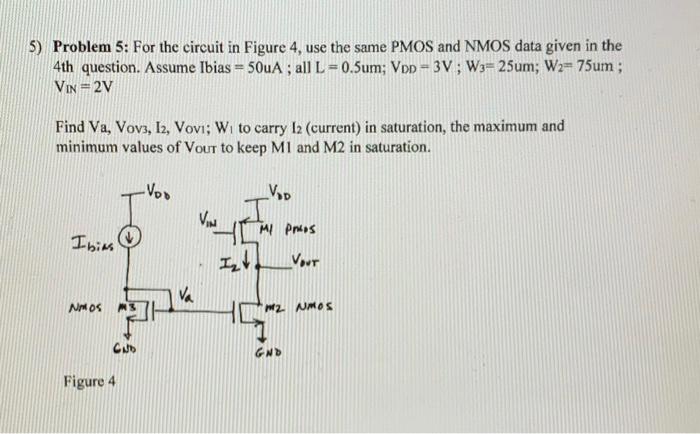

5) Problem 5: For the circuit in Figure 4, use the same PMOS and NMOS data given in the 4th question. Assume Ibias = 50uA; all L=0.5um; VDD=3V; W3= 25um; W2= 75um ; VIN=2V Find Va, Vov3, 12, Vovi; Wi to carry 12 (current) in saturation, the maximum and minimum values of Vour to keep MI and M2 in saturation. Voo VOD MI Pros Ihins VOUT NMOS M3 M₂ NMOS CND Figure 4 1₂. GND
