Consider the following state transition diagram with inputs S and X and one Moore output z: S=0 T₂ S=1 Z=1 To T₁ Z=0 Z=1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the following state transition diagram with inputs S and X and one Moore output z: S=0 T₂ S=1 Z=1 To T₁ Z=0 Z=1

Post by answerhappygod »

Consider The Following State Transition Diagram With Inputs S And X And One Moore Output Z S 0 T S 1 Z 1 To T Z 0 Z 1 1
Consider The Following State Transition Diagram With Inputs S And X And One Moore Output Z S 0 T S 1 Z 1 To T Z 0 Z 1 1 (36.17 KiB) Viewed 35 times

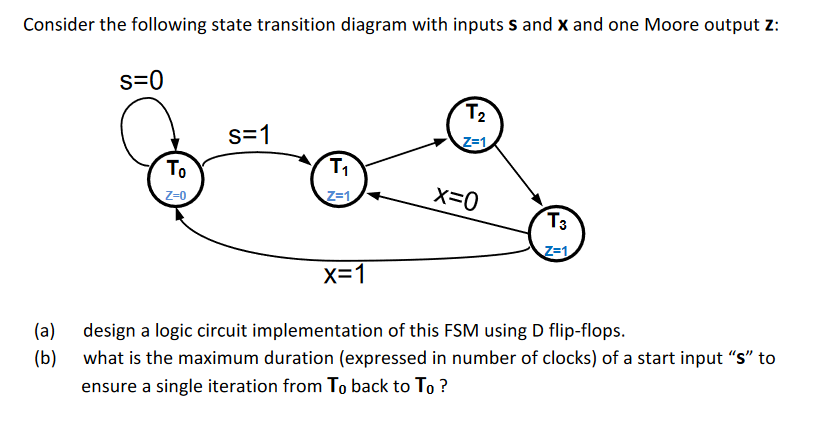

Consider the following state transition diagram with inputs S and X and one Moore output z: S=0 T₂ S=1 Z=1 To T₁ Z=0 Z=1 X=0 T3 Z=1 X=1 (a) design a logic circuit implementation of this FSM using D flip-flops. (b) what is the maximum duration (expressed in number of clocks) of a start input "s" to ensure a single iteration from To back to To?
