A makeshift dipole transmitting antenna is constructed as shown below to transmit on the 533 MHz band. The load of this

[answerhappygod]

A Makeshift Dipole Transmitting Antenna Is Constructed As Shown Below To Transmit On The 533 Mhz Band The Load Of This 1 (58.44 KiB) Viewed 25 times

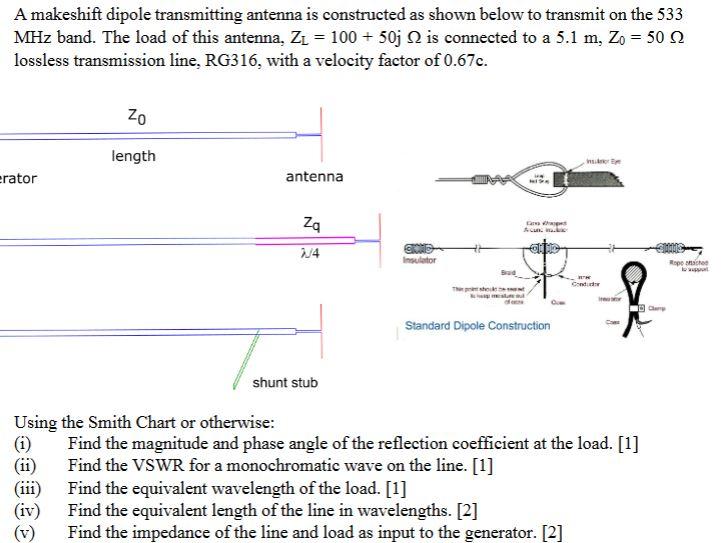

A makeshift dipole transmitting antenna is constructed as shown below to transmit on the 533 MHz band. The load of this antenna, Z₁ = 100 + 50j 2 is connected to a 5.1 m, Zo = 50 2 lossless transmission line, RG316, with a velocity factor of 0.67c. Zo length erator antenna Za Cap Acun make 74 GAND Insulator Rope onsche Bud Car Standard Dipole Construction 1 shunt stub Using the Smith Chart or otherwise: (i) Find the magnitude and phase angle of the reflection coefficient at the load. [1] Find the VSWR for a monochromatic wave on the line. [1] (ii) (111) Find the equivalent wavelength of the load. [1] (iv) Find the equivalent length of the line in wavelengths. [2] Find the impedance of the line and load as input to the generator. [2] Com WH Condu 10 Cl to support
