RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at

[answerhappygod]

Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1 (74.92 KiB) Viewed 30 times

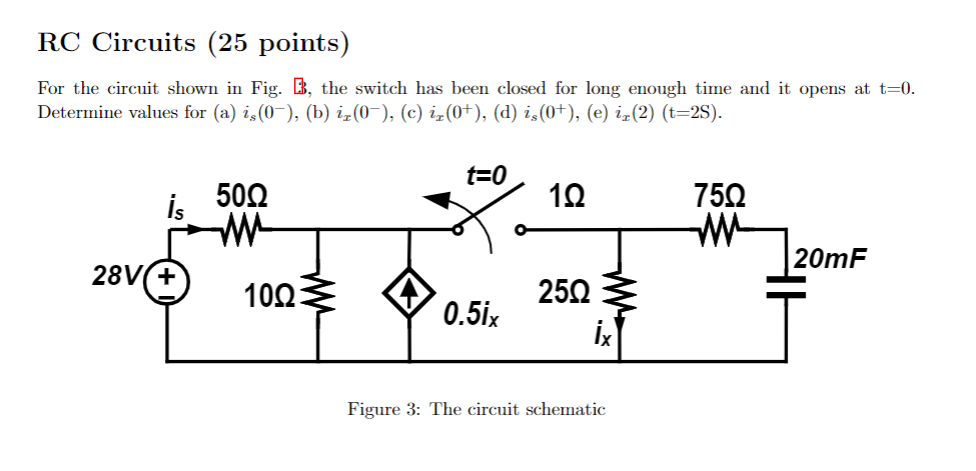

RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values for (a) is(0−), (b) i⁄(0¯), (c) iz(0+), (d) is(0+), (e) ix(2) (t=2S). t=0 102 750 İs 50Ω MM MM² 20mF 28V(+ 250 0.5ix Figure 3: The circuit schematic 100
