RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at

Post by answerhappygod »

Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1
Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1 (23.49 KiB) Viewed 17 times

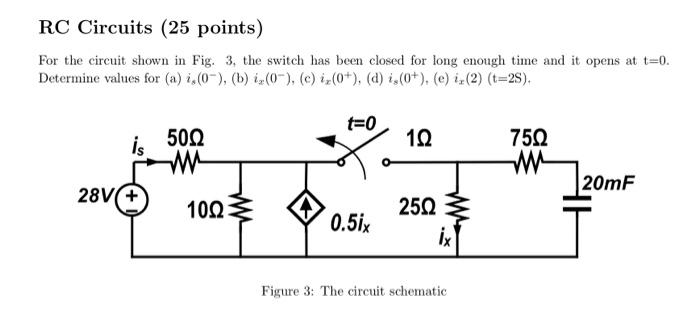

RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values for (a) i, (0-), (b) i,(0), (c) iz(0*), (d) is(0+), (e) i (2) (t=2S). t=0 is 5002 102 750 ww ww 20mF 28V( 250 10Ω 0.5ix ix Figure 3: The circuit schematic
