Phasor Analysis (25 points) For the circuit shown in Fig. 2: • Find i(t) for the given configuration (16 points). • Find
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Phasor Analysis (25 points) For the circuit shown in Fig. 2: • Find i(t) for the given configuration (16 points). • Find

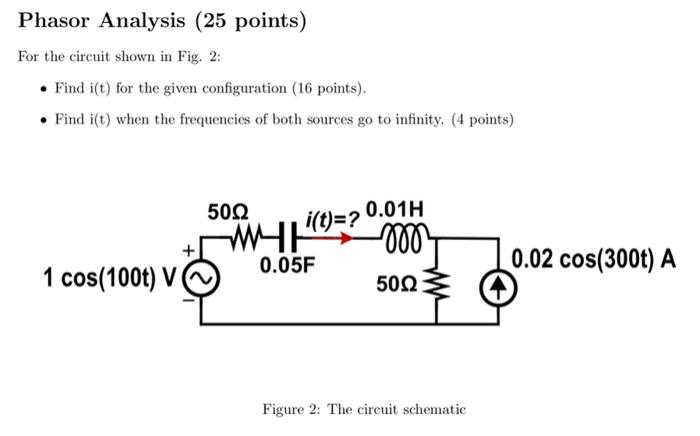

Phasor Analysis (25 points) For the circuit shown in Fig. 2: • Find i(t) for the given configuration (16 points). • Find i(t) when the frequencies of both sources go to infinity. (4 points) 5002 0.01H i(t)=? -mm 0.05F 1 cos(100t) V 50Ω Figure 2: The circuit schematic 0.02 cos(3001) A
