For the circuit shown in Fig. 2: • Find i(t) for the given configuration (16 points). Find i(t) when the frequencies of

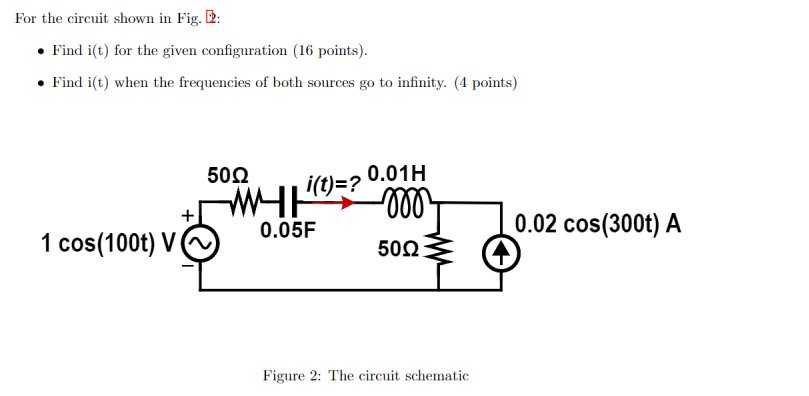

For the circuit shown in Fig. 2: • Find i(t) for the given configuration (16 points). Find i(t) when the frequencies of both sources go to infinity. (4 points) 50Ω 0.01H i(t)=? 1 cos(100t) V WHH m² 0.05F 50Ω Figure 2: The circuit schematic 0.02 cos(300t) A
