Let you want to transmit R4800 bits/sec information stream from a transmission channel which has a bandwidth of 15 kHz.

[answerhappygod]

Let You Want To Transmit R4800 Bits Sec Information Stream From A Transmission Channel Which Has A Bandwidth Of 15 Khz 1 (29.42 KiB) Viewed 40 times

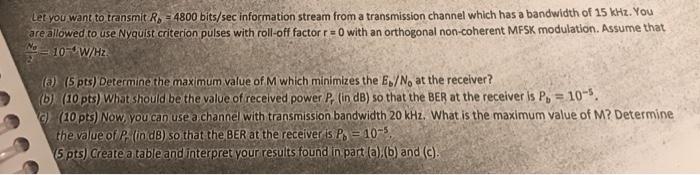

Let you want to transmit R4800 bits/sec information stream from a transmission channel which has a bandwidth of 15 kHz. You are allowed to use Nyquist criterion pulses with roll-off factor r=0 with an orthogonal non-coherent MFSK modulation. Assume that 10W/Hz No (a)) (5 pts) Determine the maximum value of M which minimizes the Eb/No at the receiver? (b) (10 pts) What should be the value of received power P, (in dB) so that the BER at the receiver is P, 10-5. G) (10 pts) Now, you can use a channel with transmission bandwidth 20 kHz. What is the maximum value of M? Determine the value of P. (in dB) so that the BER at the receiver is P=10-5, (5 pts) Create a table and interpret your results found in part (a), (b) and (c).
