3. Pulse Width Modulator Design: - Prepare a review about Pulse Width Modulator (definition, application area, and types

[answerhappygod]

3 Pulse Width Modulator Design Prepare A Review About Pulse Width Modulator Definition Application Area And Types 1 (47.06 KiB) Viewed 21 times

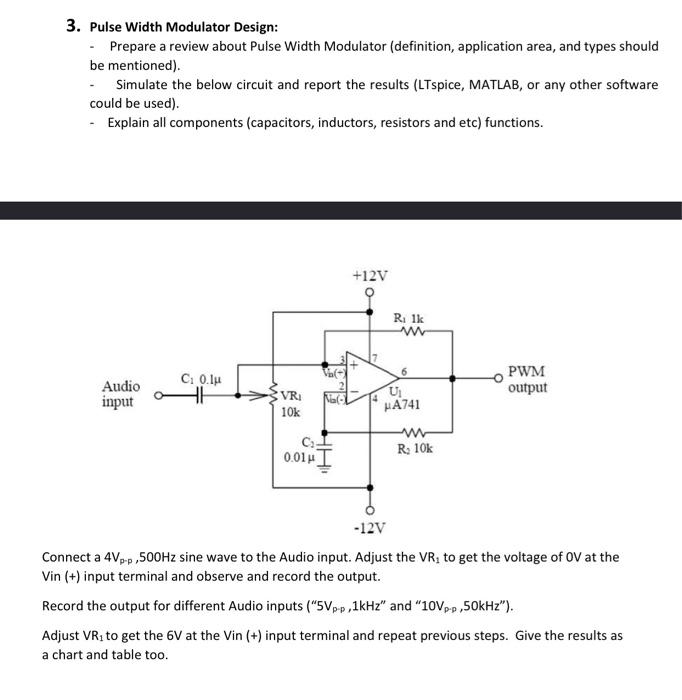

3. Pulse Width Modulator Design: - Prepare a review about Pulse Width Modulator (definition, application area, and types should be mentioned). - Simulate the below circuit and report the results (LTspice, MATLAB, or any other software could be used). - Explain all components (capacitors, inductors, resistors and etc) functions. +12V PWM C₁ 0.1μ Audio input HH output VRI 10k www C₂ R₂ 10k 0.01 μ -12V Connect a 4Vp-p,500Hz sine wave to the Audio input. Adjust the VR, to get the voltage of OV at the Vin (+) input terminal and observe and record the output. Record the output for different Audio inputs ("5Vp-p,1kHz" and "10Vp-p,50kHz"). Adjust VR₁ to get the 6V at the Vin (+) input terminal and repeat previous steps. Give the results as a chart and table too. Na(-) Rilk ww 6 U₁ HA741
