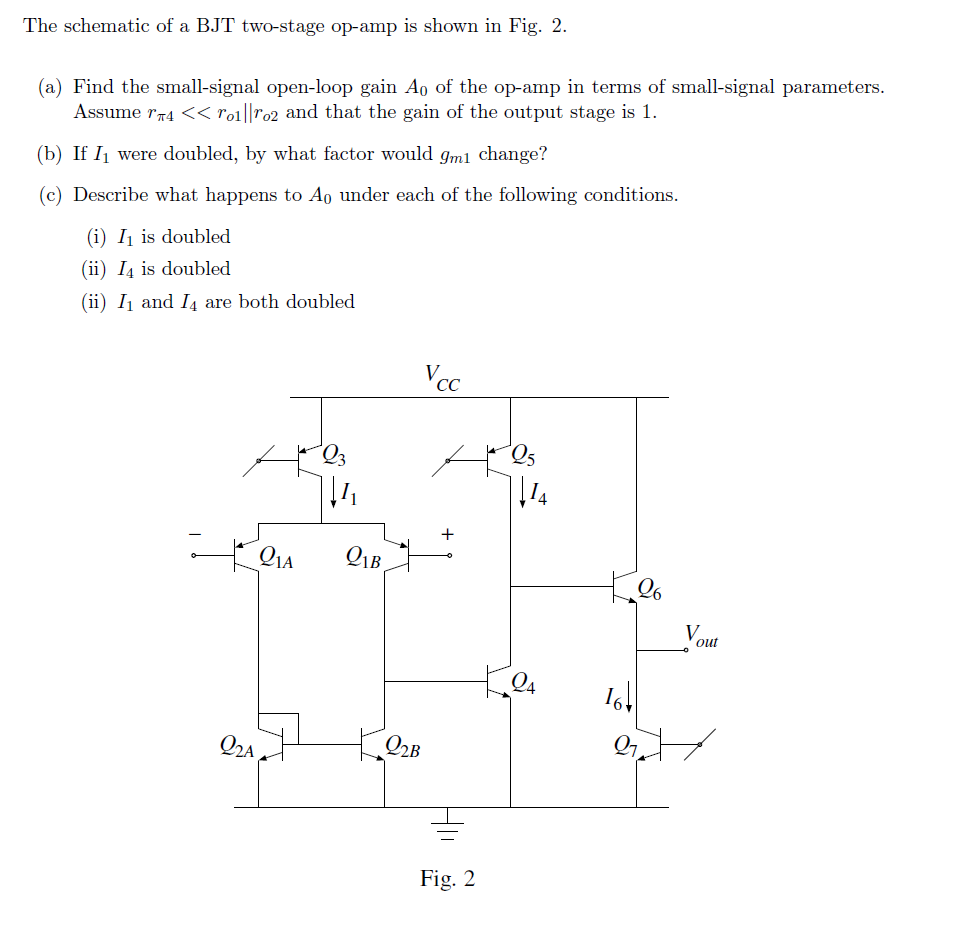

- The Schematic Of A Bjt Two Stage Op Amp Is Shown In Fig 2 A Find The Small Signal Open Loop Gain Ao Of The Op Amp In 1 (62.49 KiB) Viewed 32 times
The schematic of a BJT two-stage op-amp is shown in Fig. 2. (a) Find the small-signal open-loop gain Ao of the op-amp in
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The schematic of a BJT two-stage op-amp is shown in Fig. 2. (a) Find the small-signal open-loop gain Ao of the op-amp in
The schematic of a BJT two-stage op-amp is shown in Fig. 2. (a) Find the small-signal open-loop gain Ao of the op-amp in terms of small-signal parameters. Assume r4 <<< ro1||ro2 and that the gain of the output stage is 1. (b) If I were doubled, by what factor would gm1 change? (c) Describe what happens to Ao under each of the following conditions. (i) I₁ is doubled (ii) I4 is doubled (ii) I₁ and I are both doubled Vcc CC - QIA QIB 22A Q2B Fig. 2 Q5 16 26 91 Vou out
