A conveyor is used to drive the inertial load of 0.02 kg.m² in the required speed range with a brushless DC motor and a

Post by answerhappygod »

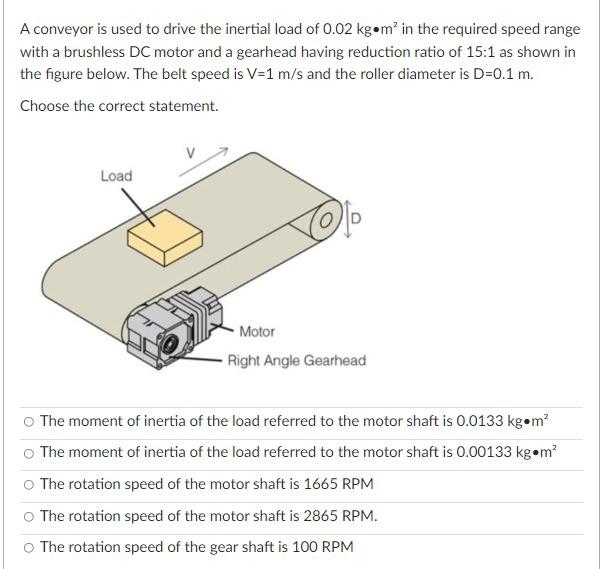

A Conveyor Is Used To Drive The Inertial Load Of 0 02 Kg M In The Required Speed Range With A Brushless Dc Motor And A 1
A Conveyor Is Used To Drive The Inertial Load Of 0 02 Kg M In The Required Speed Range With A Brushless Dc Motor And A 1 (48.49 KiB) Viewed 16 times
A conveyor is used to drive the inertial load of 0.02 kg.m² in the required speed range with a brushless DC motor and a gearhead having reduction ratio of 15:1 as shown in the figure below. The belt speed is V=1 m/s and the roller diameter is D=0.1 m. Choose the correct statement. Load Motor Right Angle Gearhead The moment of inertia of the load referred to the motor shaft is 0.0133 kg.m² The moment of inertia of the load referred to the motor shaft is 0.00133 kg m² The rotation speed of the motor shaft is 1665 RPM The rotation speed of the motor shaft is 2865 RPM. O The rotation speed of the gear shaft is 100 RPM
