Taibah University College of Engineering Question 4 (10 Marks) The circuit shown in Fig.4.1 has the following circuit pa

[answerhappygod]

Taibah University College Of Engineering Question 4 10 Marks The Circuit Shown In Fig 4 1 Has The Following Circuit Pa 1 (47.03 KiB) Viewed 18 times

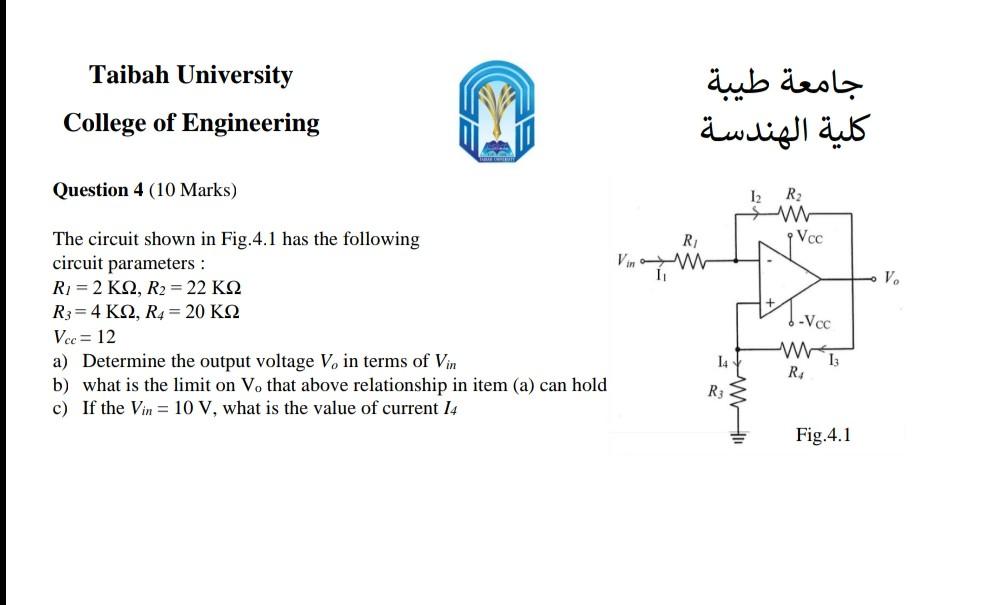

Taibah University College of Engineering Question 4 (10 Marks) The circuit shown in Fig.4.1 has the following circuit parameters: Vin Rı = 2 ΚΩ, R2 = 22 ΚΩ R, = 4 ΚΩ, R4 = 20 ΚΩ Vcc= 12 a) Determine the output voltage V, in terms of Vin b) what is the limit on Vo that above relationship in item (a) can hold c) If the Vin 10 V, what is the value of current 14 R₁ جامعة طيبة كلية الهندسة 14 R3 R₂ ww Vcc -Vcc WW13 R₁ Fig.4.1 Vo
