Submission deadline: 11:59pm on June 4, Saturday Problem 1: In the circuit given in Figure 1, if initially the outputs a

[answerhappygod]

Submission Deadline 11 59pm On June 4 Saturday Problem 1 In The Circuit Given In Figure 1 If Initially The Outputs A 1 (50.42 KiB) Viewed 37 times

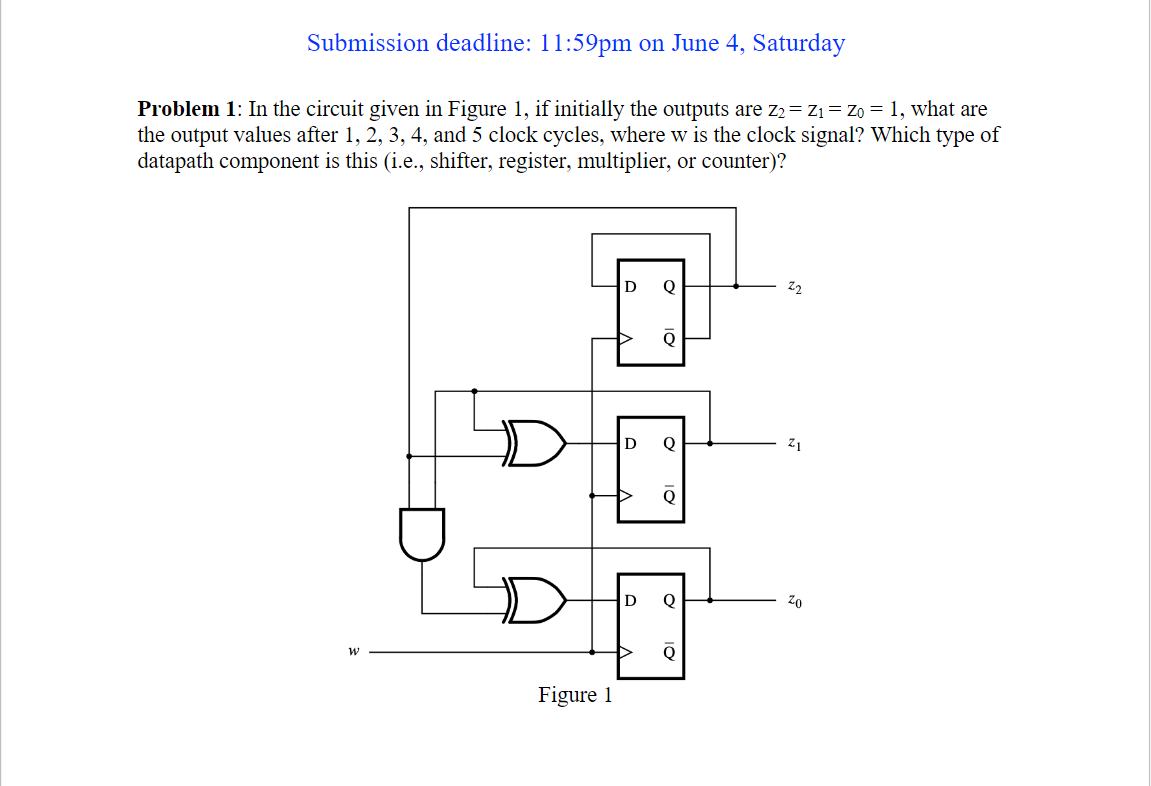

Submission deadline: 11:59pm on June 4, Saturday Problem 1: In the circuit given in Figure 1, if initially the outputs are Z₂ = Z₁ = Zo = 1, what are the output values after 1, 2, 3, 4, and 5 clock cycles, where w is the clock signal? Which type of datapath component is this (i.e., shifter, register, multiplier, or counter)? D Q 22 Q Q Q W Figure 1 D D Z1 Zo
