OBJECTIVE WORKSHEET Panel K g neutral bar H1 H2 H3 H4 D 2 L1 L2 Control Panel Figure 225.102 1. Refer to Figure 225,102

[answerhappygod]

Objective Worksheet Panel K G Neutral Bar H1 H2 H3 H4 D 2 L1 L2 Control Panel Figure 225 102 1 Refer To Figure 225 102 1 (66.5 KiB) Viewed 34 times

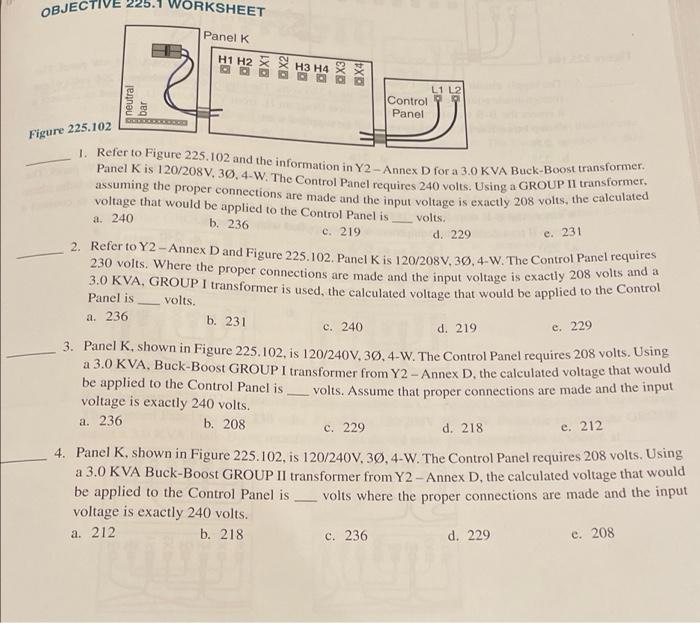

OBJECTIVE WORKSHEET Panel K g neutral bar H1 H2 H3 H4 D 2 L1 L2 Control Panel Figure 225.102 1. Refer to Figure 225,102 and the information in Y2-Annex D for a 3.0 KVA Buck-Boost transformer. Panel K is 120/208V, 30, 4-W. The Control Panel requires 240 volts. Using a GROUP II transformer, assuming the proper connections are made and the input voltage is exactly 208 volts, the calculated voltage that would be applied to the Control Panel is. a. 240 b. 236 volts. c. 219 d. 229 e. 231 2. Refer to Y2 - Annex D and Figure 225.102. Panel K is 120/208V, 30, 4-W. The Control Panel requires 3.0 KVA, GROUP I transformer is used, the calculated voltage that would be applied to the Control 230 volts. Where the proper connections are made and the input voltage is exactly 208 volts and a Panel is. volts. a. 236 b. 231 c. 240 d. 219 c. 229 3. Panel K, shown in Figure 225.102, is 120/240V, 30, 4-W. The Control Panel requires 208 volts. Using a 3.0 KVA, Buck-Boost GROUP I transformer from Y2 - Annex D, the calculated voltage that would be applied to the Control Panel is volts. Assume that proper connections are made and the input voltage is exactly 240 volts. a. 236 b. 208 c. 229 d. 218 e. 212 4. Panel K, shown in Figure 225.102, is 120/240V, 30, 4-W. The Control Panel requires 208 volts. Using a 3.0 KVA Buck-Boost GROUP II transformer from Y2 - Annex D, the calculated voltage that would be applied to the Control Panel is volts where the proper connections are made and the input voltage is exactly 240 volts. a. 212 b. 218 c. 236 d. 229 e. 208 X3 X4
