7. Consider the Boolean expression x = (A'B + BC). a) Draw the circuit to implement the Boolean expression. b) Write dow

[answerhappygod]

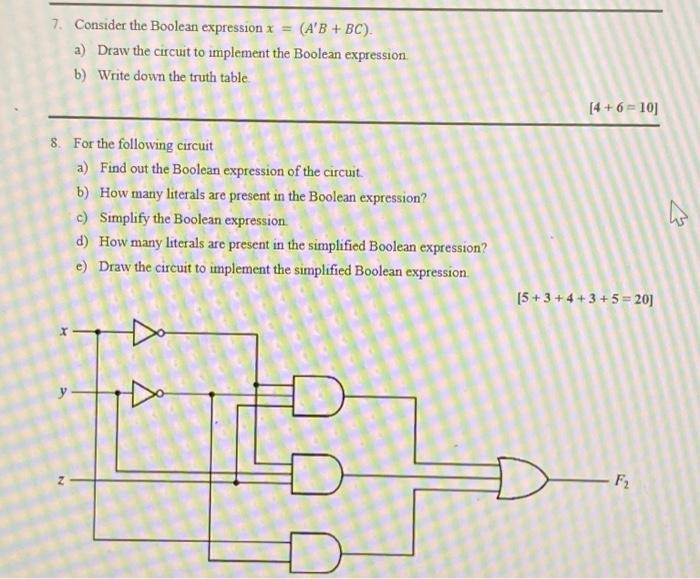

7 Consider The Boolean Expression X A B Bc A Draw The Circuit To Implement The Boolean Expression B Write Dow 1 (59.7 KiB) Viewed 28 times

7. Consider the Boolean expression x = (A'B + BC). a) Draw the circuit to implement the Boolean expression. b) Write down the truth table 8. For the following circuit a) Find out the Boolean expression of the circuit. b) How many literals are present in the Boolean expression? c) Simplify the Boolean expression. d) How many literals are present in the simplified Boolean expression? Draw the circuit to implement the simplified Boolean expression. e) N [4+6=10] [5+3+4+3+5=20] - F₂ 4
