Question 2: For the circuit given below, the condition for the initial outputs are given to be: (z2 = z1 = z0 = 1). The

[answerhappygod]

Question 2:
For the circuit given below, the condition for the
initial outputs are given to be: (z2 = z1 = z0 = 1). The
clock signal is given to be 'w'. Please help with the following
question:
A) What would the output values after be after 1, 2, 3, 4, and 5
clock cycles?
B) Which type of data-path component is this (is it
a: shifter, register, multiplier, or counter)?

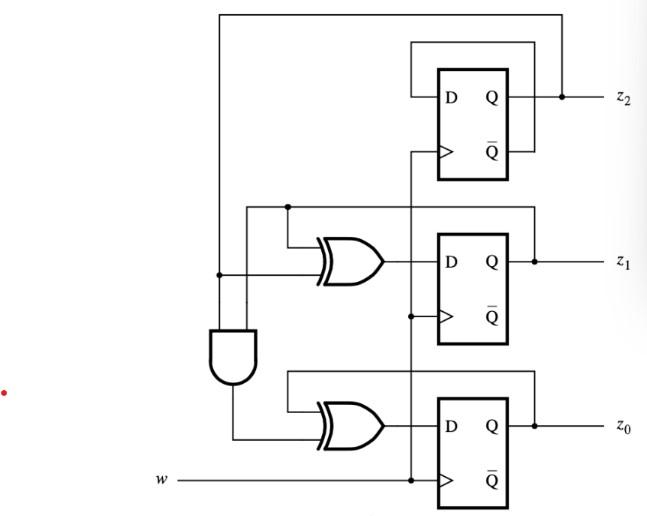

circuit:

Question 2 For The Circuit Given Below The Condition For The Initial Outputs Are Given To Be Z2 Z1 Z0 1 The 1 (21.04 KiB) Viewed 38 times

please show all work
thank you!
