(Convolution CT) Consider the following LTI system with input x(t) and output y(t): LTI x(t) y(t) h(t) (a) (5 pts) Sketc

[answerhappygod]

Convolution Ct Consider The Following Lti System With Input X T And Output Y T Lti X T Y T H T A 5 Pts Sketc 1 (29.47 KiB) Viewed 21 times

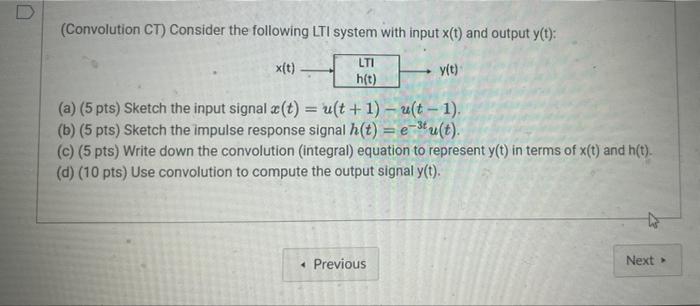

(Convolution CT) Consider the following LTI system with input x(t) and output y(t): LTI x(t) y(t) h(t) (a) (5 pts) Sketch the input signal x(t) = u(t+1)-u(t-1). (b) (5 pts) Sketch the impulse response signal h(t) = e-³tu(t). (c) (5 pts) Write down the convolution (integral) equation to represent y(t) in terms of x(t) and h(t). (d) (10 pts) Use convolution to compute the output signal y(t). Next > < Previous
