From the given Bode diagram, compute the Downward Gain Margin(absolute magnitude, NOT dB) and Phase Margin and select fr

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

From the given Bode diagram, compute the Downward Gain Margin(absolute magnitude, NOT dB) and Phase Margin and select fr

Post by answerhappygod »

From The Given Bode Diagram Compute The Downward Gain Margin Absolute Magnitude Not Db And Phase Margin And Select Fr 1
From The Given Bode Diagram Compute The Downward Gain Margin Absolute Magnitude Not Db And Phase Margin And Select Fr 1 (136.16 KiB) Viewed 23 times
which is incorrect?

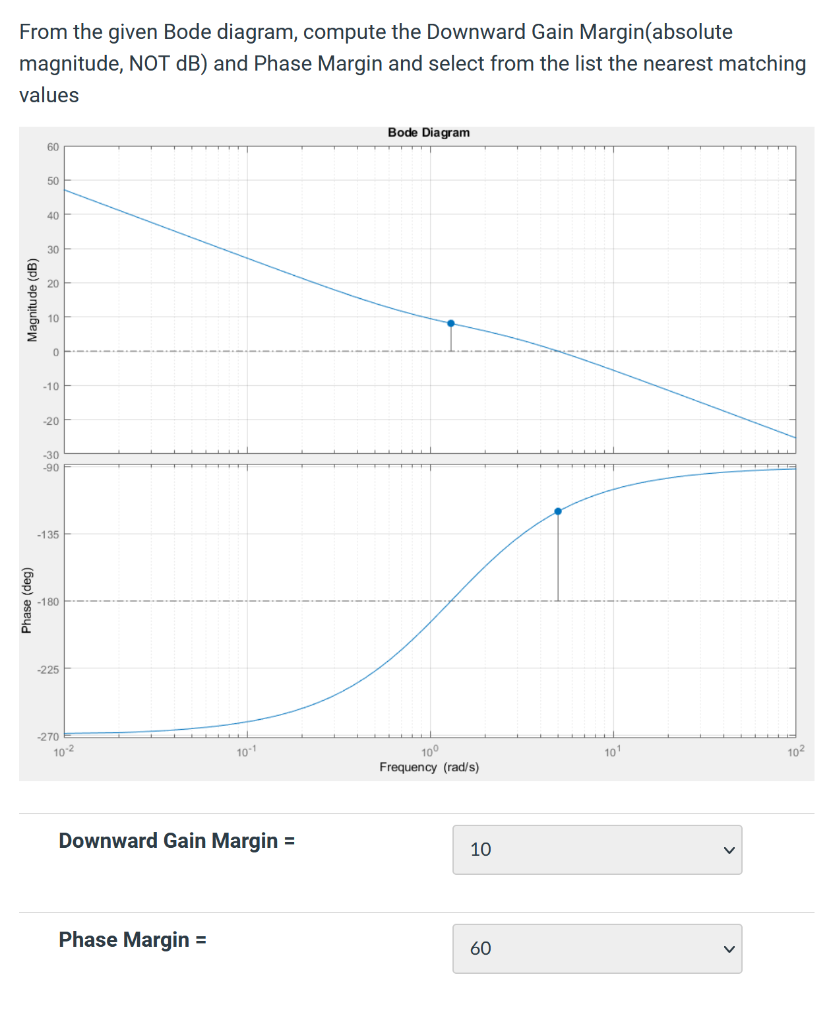

From the given Bode diagram, compute the Downward Gain Margin(absolute magnitude, NOT dB) and Phase Margin and select from the list the nearest matching values Bode Diagram 60 50 40 30 20 10 0 -10 -20 -30 -90 -135 10² 10⁰ Frequency (rad/s) Magnitude (dB) Phase (deg) -180 -225 -270 10-2 10-1 Downward Gain Margin = Phase Margin = 10 60 10¹
