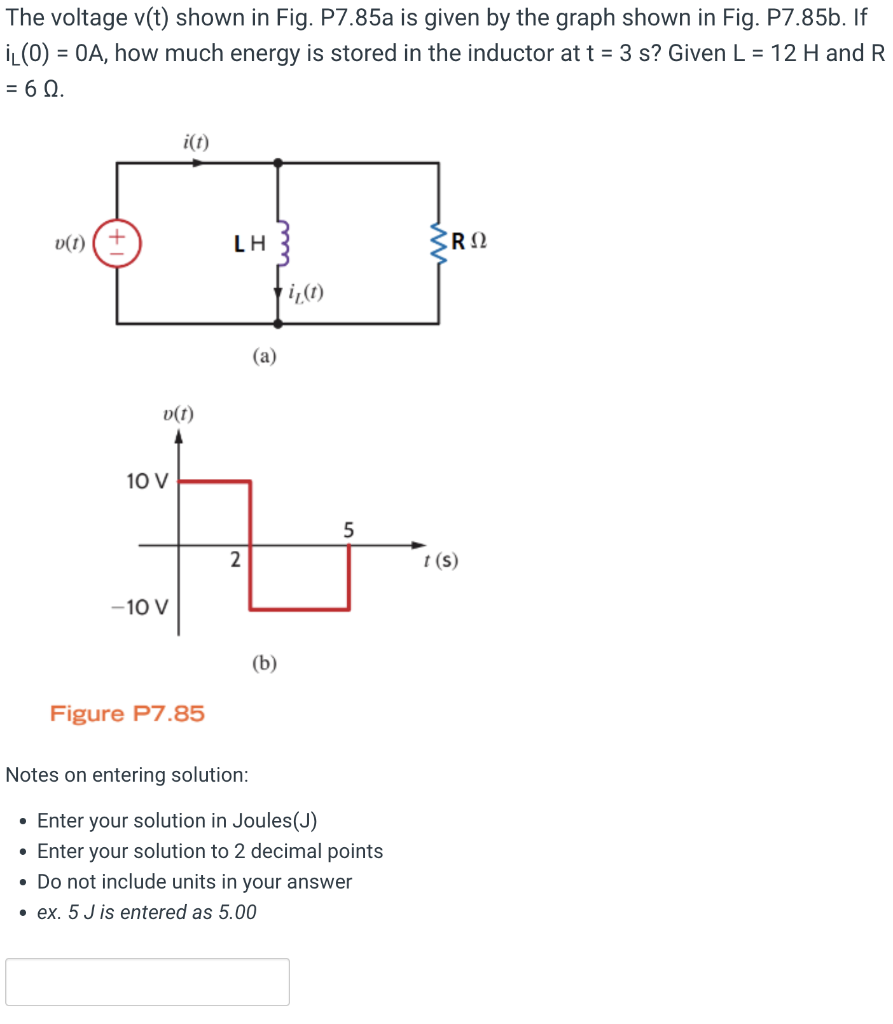

The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If IL(0) = 0A, how much energy is stored in the inductor at t = 3 s? Given L = 12 H and R = 6 Ω. i(t) 3R Ω v(1) (+ v(t) LH (a) 2 10 V -10 V Figure P7.85 Notes on entering solution: • Enter your solution in Joules (J) • Enter your solution to 2 decimal points . Do not include units in your answer .ex. 5 J is entered as 5.00 iz (1) (b) 5 t(s)
