The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If IL (0) = 0, how much power is suppl

[answerhappygod]

The Voltage V T Shown In Fig P7 85a Is Given By The Graph Shown In Fig P7 85b If Il 0 0 How Much Power Is Suppl 1 (88.49 KiB) Viewed 26 times

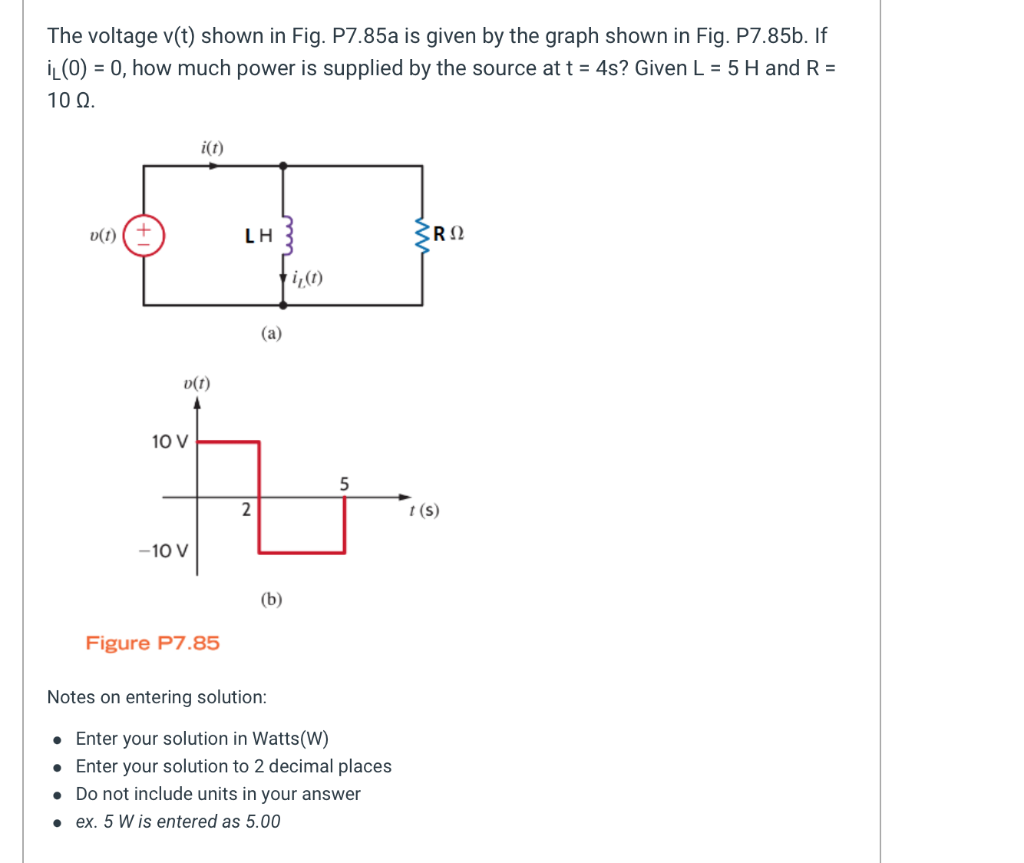

The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If IL (0) = 0, how much power is supplied by the source at t = 4s? Given L = 5 H and R = 10 Ω. i(t) v(1) (+ <RO v(1) LH (a) 2 i₂ (1) 10 V -10 V (b) Figure P7.85 Notes on entering solution: • Enter your solution in Watts (W) • Enter your solution to 2 decimal places . Do not include units in your answer .ex. 5 W is entered as 5.00 5 t (s)
