Question 1 1 pts Find the time constant, t, of the output current, i。(t), given the circuit in Fig. P7.7. Given R1 = 9 k

[answerhappygod]

Question 1 1 Pts Find The Time Constant T Of The Output Current I T Given The Circuit In Fig P7 7 Given R1 9 K 1 (105.99 KiB) Viewed 23 times

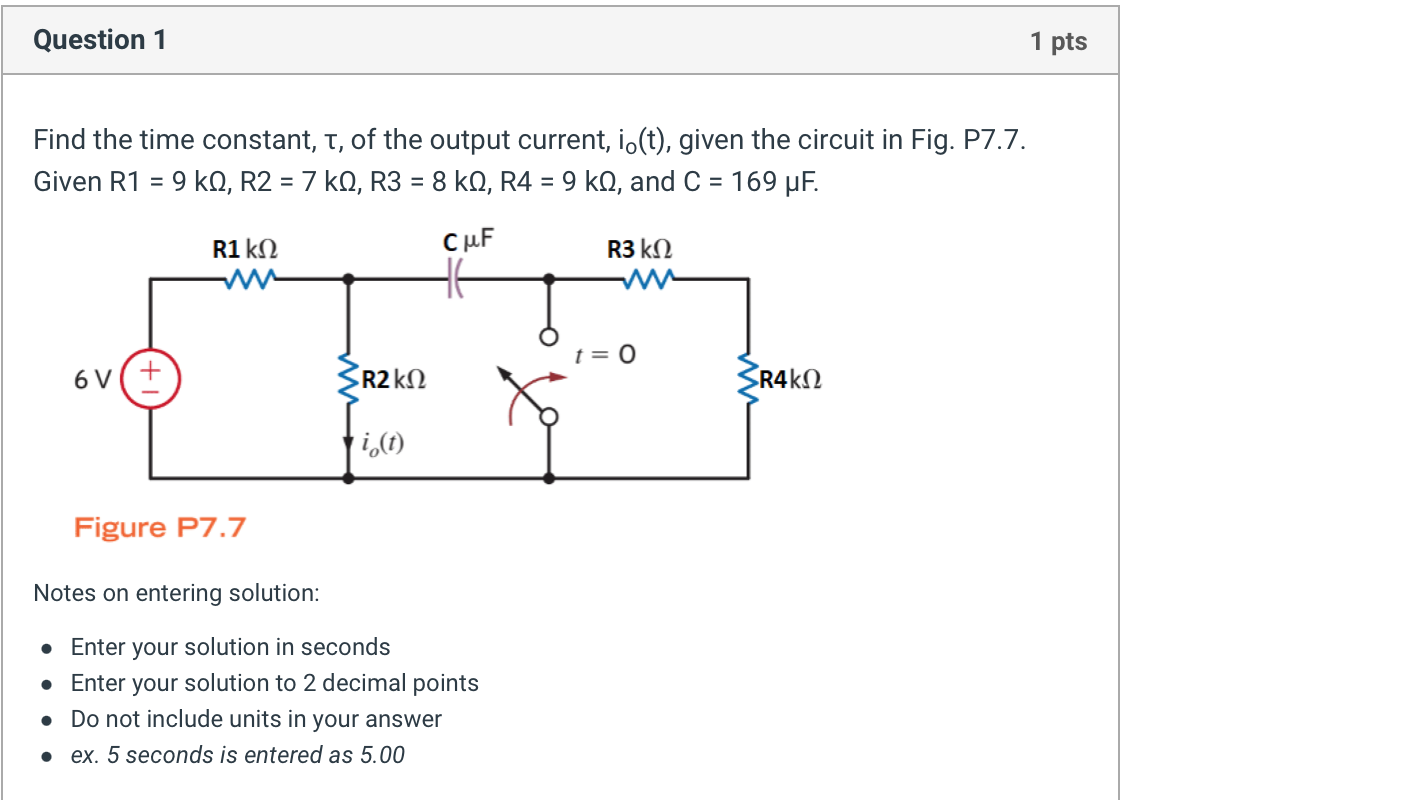

Question 1 1 pts Find the time constant, t, of the output current, i。(t), given the circuit in Fig. P7.7. Given R1 = 9 kQ, R2 = 7 kQ, R3 = 8 kQ, R4 = 9 kQ, and C = 169 μF. R1 ΚΩ CμF R3 ΚΩ ww 6V (+) SR4ΚΩ Figure P7.7 Notes on entering solution: • Enter your solution in seconds • Enter your solution to 2 decimal points . Do not include units in your answer ● ex. 5 seconds is entered as 5.00 SR2 ΚΩ i(t) t = 0
