Q.2) For the JFET biasing circuit, answer the following questions. The values of Rp and Rs are the same are obtained fro

Post by answerhappygod »

Q 2 For The Jfet Biasing Circuit Answer The Following Questions The Values Of Rp And Rs Are The Same Are Obtained Fro 1
Q 2 For The Jfet Biasing Circuit Answer The Following Questions The Values Of Rp And Rs Are The Same Are Obtained Fro 1 (23.29 KiB) Viewed 31 times

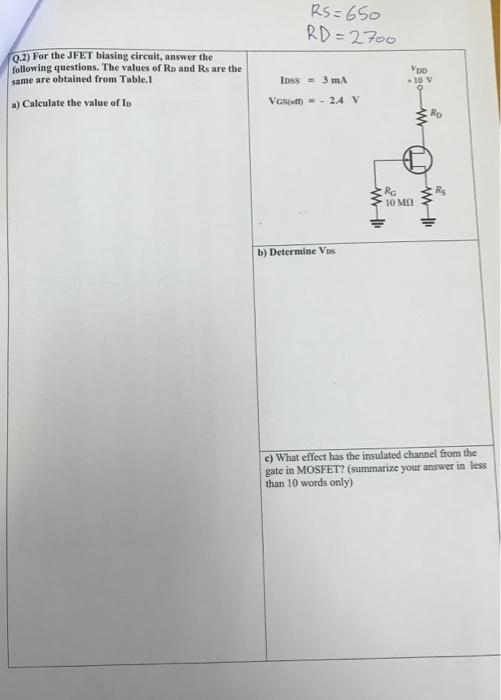

Q.2) For the JFET biasing circuit, answer the following questions. The values of Rp and Rs are the same are obtained from Table.1 a) Calculate the value of In RS=650 RD=2700 IDSS = 3 mA VGS(off) 2.4 V www VDO - 10 V Ra 10 MO Ro www b) Determine Vos c) What effect has the insulated channel from the gate in MOSFET? (summarize your answer in less than 10 words only)
